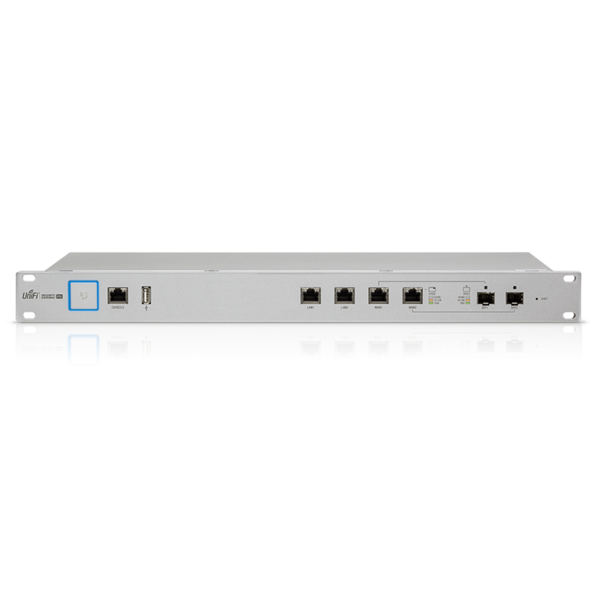

Zgradite svoje varno in prilagodljivo omrežje z Ubiquiti UniFi® Security Gateway Pro, ki je del sistema UniFi Enterprise.
Unifi Security Gateway Pro je visoko zmogljiv gigabitni usmerjevalnik, ki zagotavlja robustno varnost in napredne funkcije usmerjanja.
Dve kombinaciji SFP / RJ45 vrat omogočata optično povezljivost, ki omogoča hitrost do 1 Gbps.
Napredno strojno pospešeno posredovanje paketov zagotavlja zmogljivost 1+ milijonov paketov na sekundo.
Unifi Security Gateway PRO ponuja štiri neodvisna Ethernet vrata s polno hitrostjo 4 Gbps.
Lastnosti:

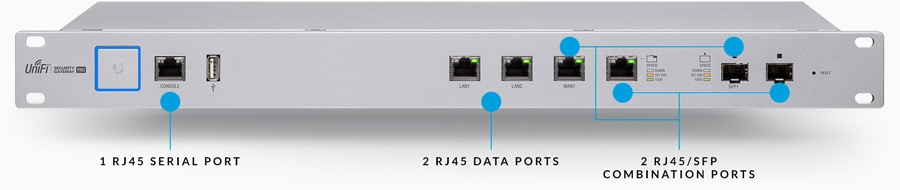

(2) Gigabitna ethernetna vrata RJ45
(2) Gigabitna kombinirana vrata RJ45 / SFP
4 Gbps Full Line Rate Layer 3 Posredovanje
1+ milijon paketov na sekundo za 64-bajtne pakete
Prefinjen in intuitiven grafični nadzor uporabniškega vmesnika
upravljanje preko aplikacije UniFi
Specifikacije:
| Mechanical | |
| Dimensions | 484 x 44 x 164 mm (19.06 x 1.73 x 6.46") |
| Weight | 2.3 kg (5.07 lb) |
| Max. Power Consumption | 40W |
| Power Supply | Internal AC/DC Power Adapter, 60W (24V, 2.5A) |
| Power Input | 110 - 240VAC |
| LEDs | |
| System | Status |
| Data Ports | Speed/Link/Activity |
| Networking Interfaces | |
| Serial Console Port | (1) RJ45 Serial Port |
| Data Ports | (2) 10/100/1000 RJ45 LAN Ports |
| (2) 1 Gbps RJ45/SFP Combination WAN Ports | |
| Layer 3 Forwarding Performance | |
| Packet Size: 64 Bytes | 2,400,000 pps |
| Packet Size: 512 Bytes or Larger | 4 Gbps (Line Rate) |
| Processor | Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing |
| System Memory | 2 GB DDR3 RAM |
| On-Board Flash Storage | 4 GB |
| Certifications | CE, FCC, IC |
| Rackmount | Yes |
| Operating Temperature | ‐10 to 45° C (14 to 113° F) |
| Operating Humidity | 10 to 90% Noncondensing |
