EdgeSwitch je popolnoma upravljano PoE + Gigabit stikalo, ki zagotavlja robustno zmogljivost in inteligentno preklapljanje za rastoča omrežja.
Ponuja številne zmogljivosti in inteligentno preklapljanje s svojimi 10 neodvisnimi preklopnimi vrati.
Za prilagodljivost je vključena možnost DC vhoda.

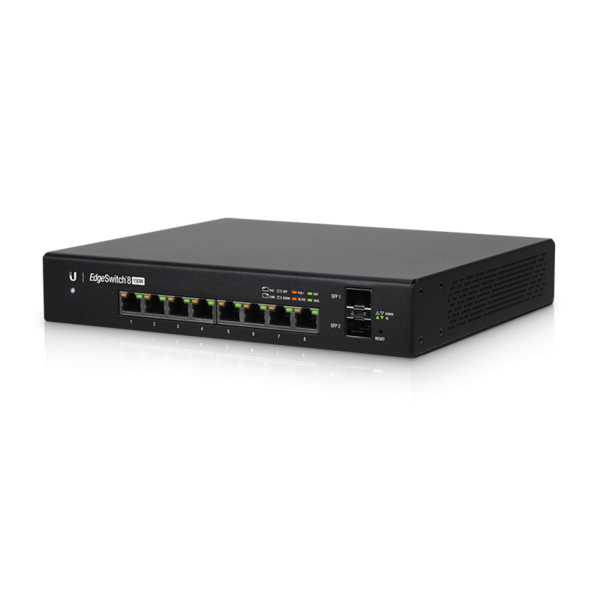

Zgradite in razširite svoje omrežje z Ubiquiti EdgeSwitch®, ki je del linije izdelkov EdgeMAX®.
Lastnosti:

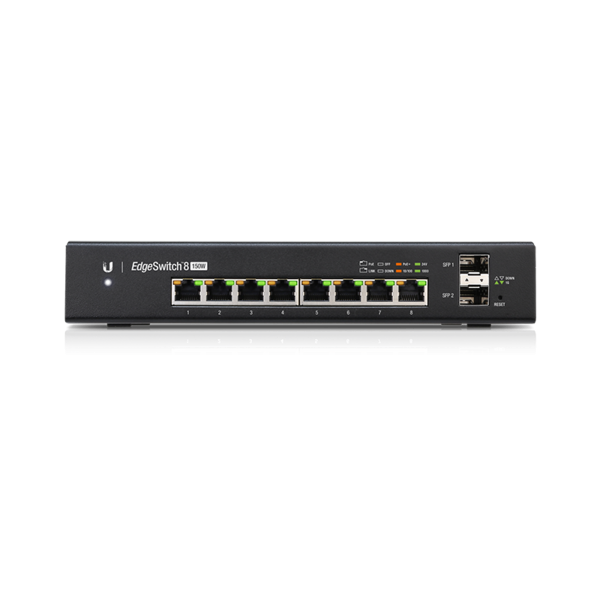

(8) Gigabitnih vrat RJ45
(2) SFP vhoda

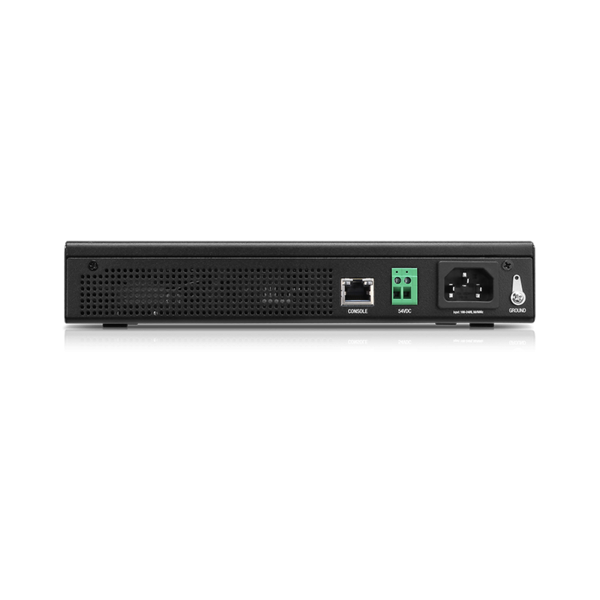

(1) Serijska vrata konzole
Neblokirajoča prepustnost: 10 Gbps
Preklopna zmogljivost: 20 Gbps
Hitrost posredovanja: 14,88 Mpps
Največja poraba energije: 150W
Podpira POE + IEEE 802.3at / af in 24V pasivni PoE
Montažna na steno z nosilci (vključeno)
Možnost namestitve na mizo
Možnost enosmernega (DC) vhoda (redundančna ali samostojna)
Specifikacije:
| EdgeSwitch 8 150W | |
| Dimensions | 204 x 43 x 235 mm |
| (8.03 x 1.69 x 9.25") | |
| Weight | |
| Without Wall Mount | 1.72 kg (3.79 lb) |
| With Wall Mount | 1.8 kg (3.96 lb) |
| Total Non-Blocking Line Rate | 10 Gbps |
| Max. Power Consumption | 20W (Excludes PoE Output) |
| Power Method | |
| AC | AC/DC Integrated PSU, Universal Input |
| DC | DC External, (Self-Correcting Polarity Protection) Terminal Block Input |
| Power Supply | Internal AC/DC 150W |
| Operating Voltage | |
| AC | 100 to 240VAC, 50-60 Hz |
| DC | 42 to 56VDC |
| LEDs | |
| System | Status |
| RJ45 Data Ports | PoE; Link/Speed/Activity |
| SFP Data Ports | Link/Speed/Activity |
| Networking Interfaces | (8) 10/100/1000 Mbps RJ45 Ports |
| (2) 1 Gbps SFP Ports | |
| Management Interface | Ethernet In-Band, UART Console Out-of-Band |
| PoE Interfaces | (8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6) |
| (8) 24V/0.7A 2-Pair (+4, 5; -7, 8) | |
| ESD/EMP Protection | ± 24kV Air, ± 24kV Contact |
| Operating Temperature | |
| Internal AC/DC @ 150W | -25 to 45° C (-13 to 113° F) |
| Internal AC/DC @ 100W | -25 to 55° C (-13 to 131° F) |
| External DC | -25 to 60° C (-13 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
