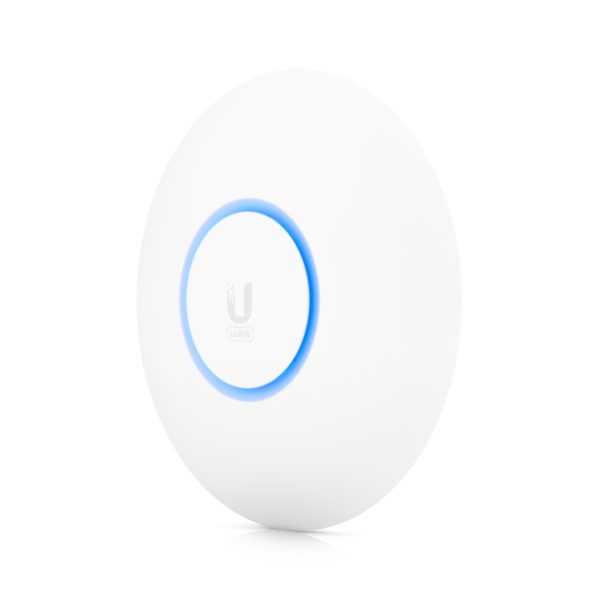

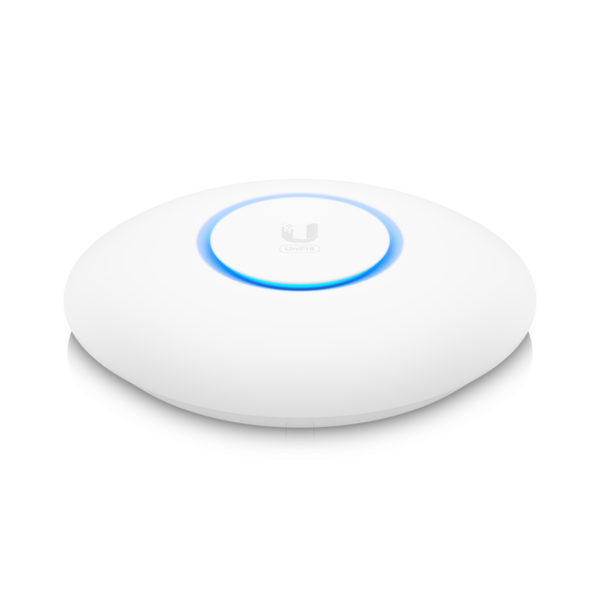

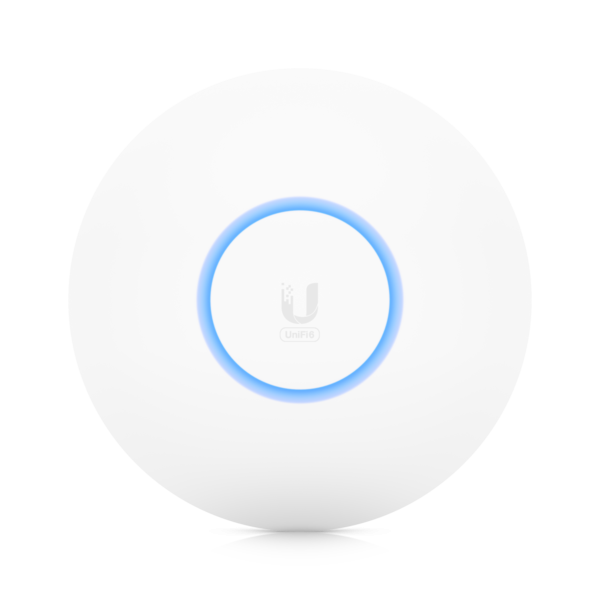

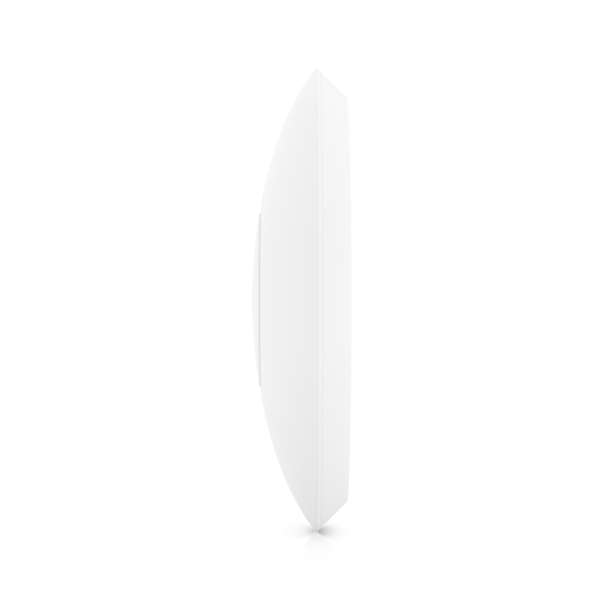

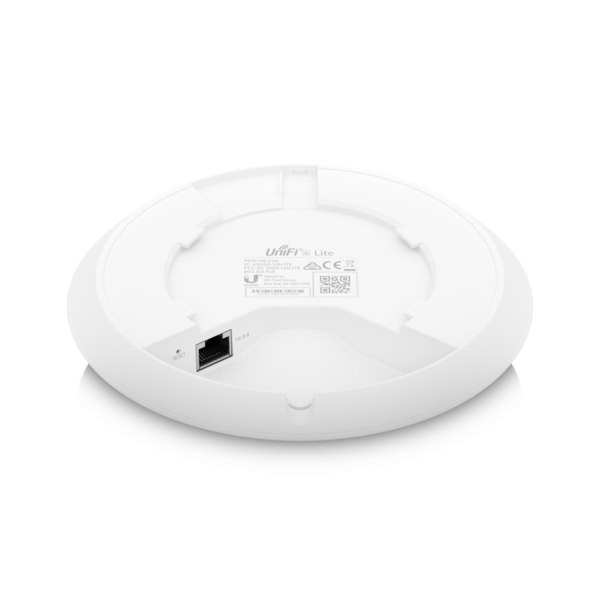

Dostopna točka Wi-Fi 6 z dvopasovnim 2x2 MIMO v kompaktni izvedbi za nizkoprofilno namestitev.
UniFi 6 Lite je 2x2 Wi-Fi 6 dostopna točka, ki zagotavlja radijsko frekvenco do 1,5 Gbps s 5 GHz (MU-MIMO in OFDMA) in 2,4 GHz (MIMO).
UniFi 6 Lite namestite vodoravno v strop, da pokrije okolje z visoko gostoto, ali pa ga namestite navpično na steno, da razširite svoj domet.
UniFi 6 Lite ima kompaktno in majhno zasnovo, zato lahko uporablja pokrove nanoHD in dodatke za pritrditev.
LASTNOSTI:
- 2x2 visoko učinkovit Wi-Fi 6
- 5 GHz pas 2x2 MU-MIMO in OFDMA s hitrostjo 1,2 Gbps
- 2,4 GHz pas 2x2 MIMO s hitrostjo 300 Mbps
- Gigabitni Ethernet, napaja se s 802.3af PoE (PoE injektor ni vključen)
- Združljiv s pokrovi UAP-nanoHD in vgradnim nosilcem
- Upravlja se z različico omrežne aplikacije UniFi: 5.14.3 ali novejša
SPECIFIKACIJE:
| Mechanical | |
| Dimensions | Ø160 x 32.65 mm (Ø6.3 x 1.3") |
| Weight | Without Mount: 300 g (10.6 oz) |
| With Mount: 315 g (11.1 oz) | |
| Enclosure Characteristics | Polycarbonate 110 and ADC12 Die Casting |
| Mounting Characteristics | Polycarbonate, SGCC Steel |
| Hardware | |
| Processor Specs | 880 MHz MIPS 1004 KEc |
| Memory Information | 256 MB |
| Management Interface | Ethernet In-Band |
| Networking Interface | (1) 10/100/1000 Mbps Ethernet RJ45 |
| Buttons | Factory Reset |
| LEDs | White/Blue |
| Power Method | 802.3af PoE, Passive PoE (48V) |
| Power Supply | 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included) |
| Supported Voltage Range | 44 to 57VDC |
| Max. Power Consumption | 12W |
| Max. TX Power | |
| 2.4GHz | 23 dBm |
| 5GHz | 23 dBm |
| MIMO | |
| 2.4GHz | 2 x 2 |
| 5GHz | 2 x 2 |
| Throughput Speeds | |
| 2.4GHz | 300 Mbps |
| 5GHz | 1201 Mbps |
| Antenna Gain | |
| 2.4GHz | 2.8 dBi |
| 5GHz | 3 dBi |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| Wi-Fi Standards | 802.11a/b/g |
| Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 | |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) |
| *Supported With Upcoming Controller Versions | |
| BSSID | 8 per Radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Supported Data Rates (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (Wi-Fi 4) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11ac (Wi-Fi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11ax (Wi-Fi 6) | 6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80) |
