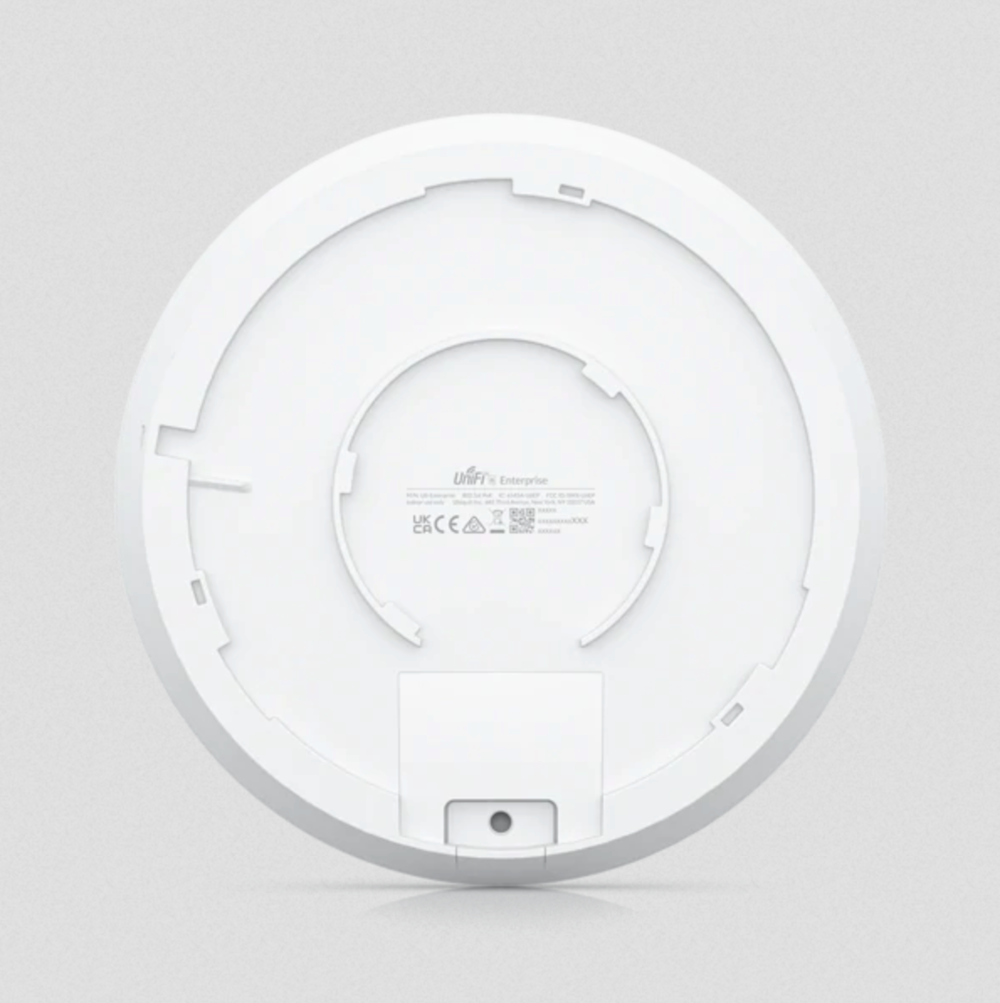

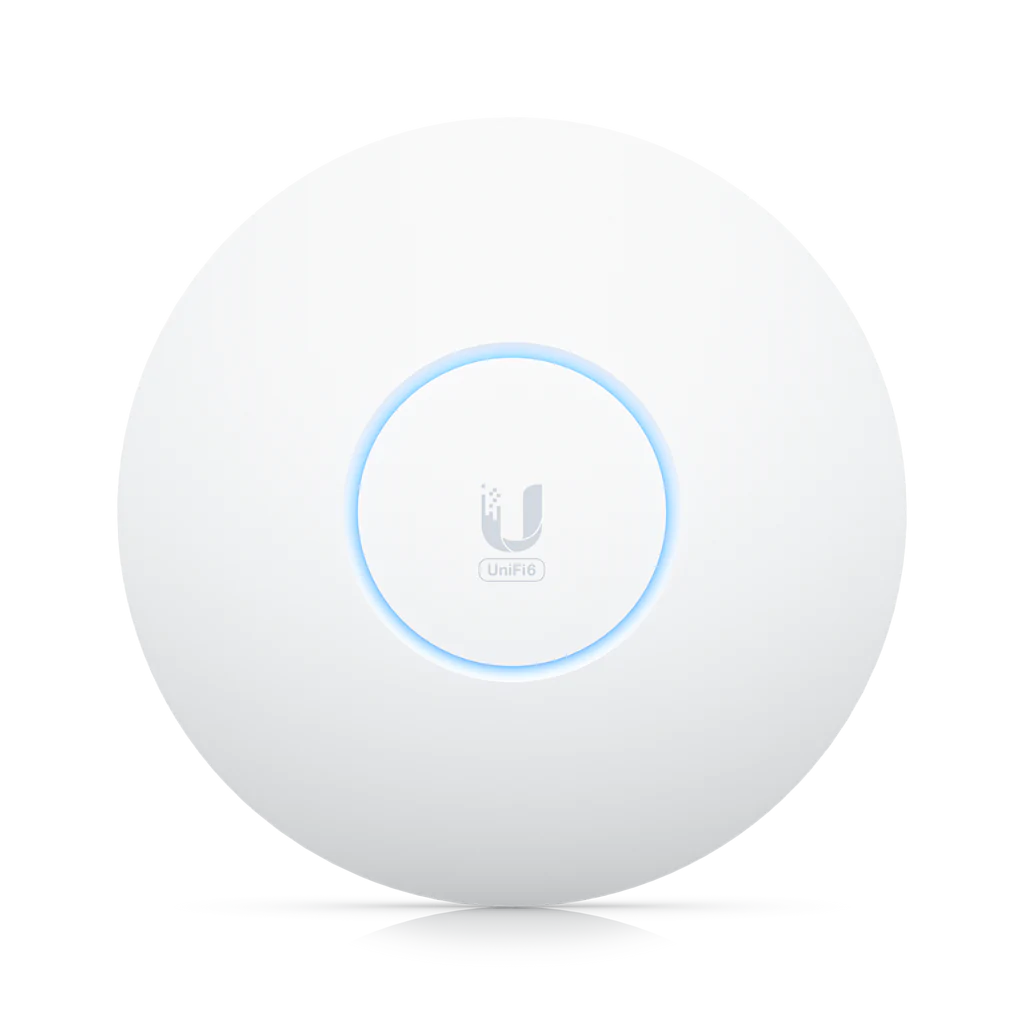

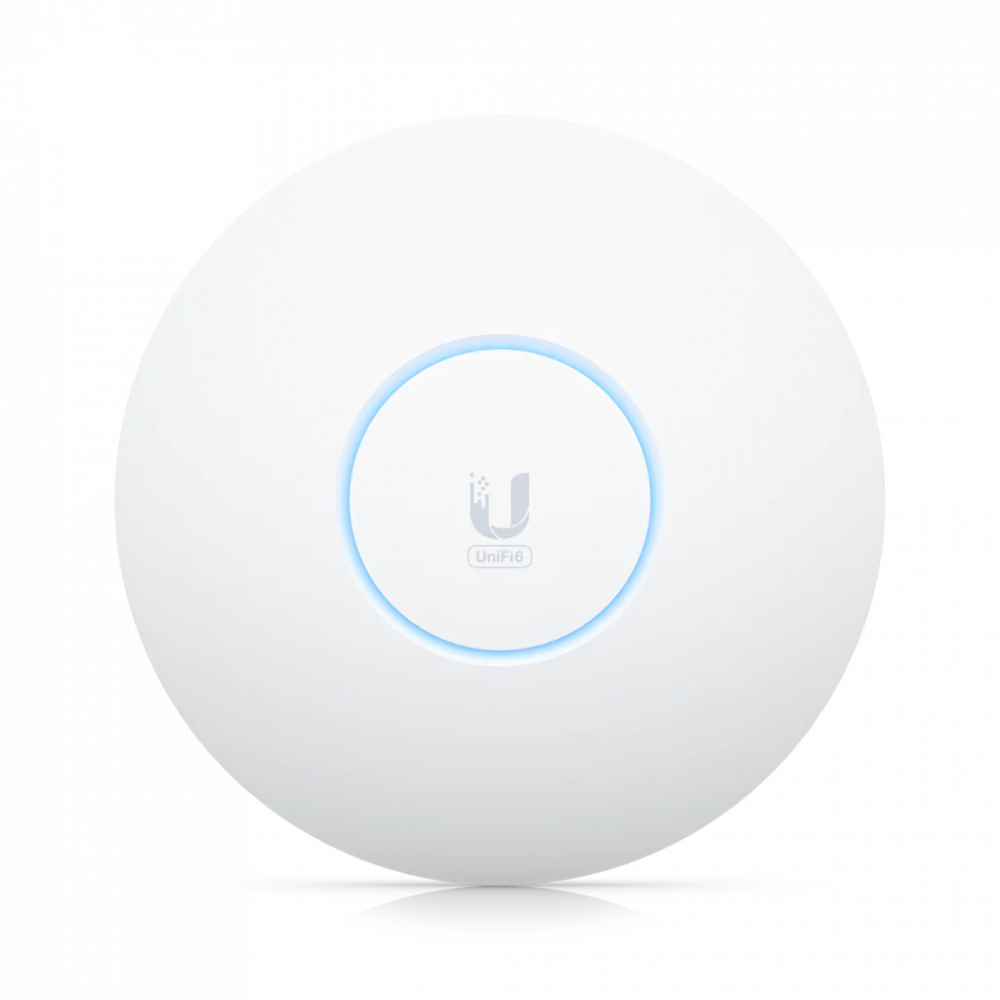

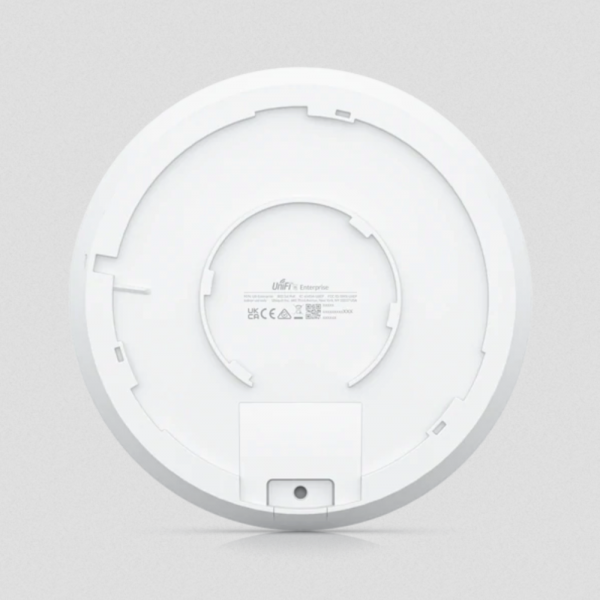

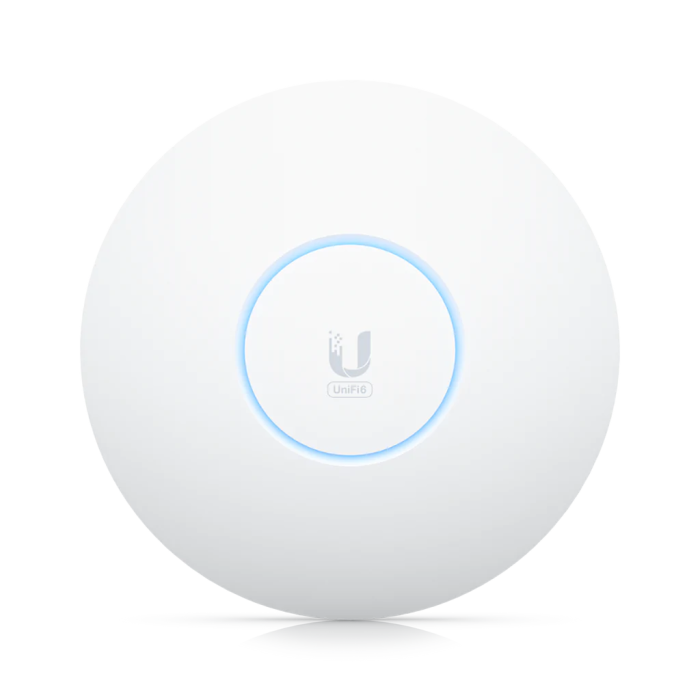

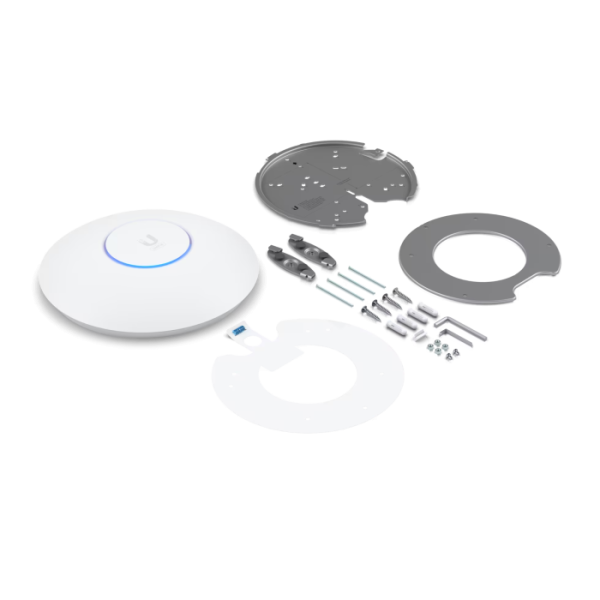

Visoko zmogljiva, stropno nameščena dostopna točka WiFi 6E, zasnovana za brezhibno večpasovno pokritost v odjemalskih okoljih z visoko gostoto.
Lastnosti:
- 140 m² (1500 ft²) pokritosti
- 600+ povezanih naprav
- WiFi6 (4x4 MIMO)
- Napaja se s pomočjo PoE+
- Dodatni 6 GHz radio
- 2,5 GbE navzgornja povezava
| Dimenzije | Ø220 x 48 mm (Ø8.7 x 1.9") |
| Teža | Without mount: 960 g (2.1 lb) |
| With mount: 1090 g (2.4 lb) | |
| Materiali ohišja | Polycarbonate, aluminum |
| Montažni material | Stainless steel (SUS304) |
| Strojna oprema | |
| Omrežni vmesnik | (1) 2.5GbE RJ45 port |
| Vmesnik za upravljanje | Ethernet |
| Bluetooth | |
| Metoda moči | PoE+ |
| Napajanje | UniFi PoE switch |
| 48V, 0.5A PoE adapter (optional) | |
| Podprto napetostno območje | 44—57V DC |
| maks. poraba energije | 22W |
| maks. TX moč | |
| 2,4 GHz | 22 dBm |
| 5-7 GHz | 26 dBm |
| MIMO | |
| 2,4 GHz | 2 x 2 (UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| Stopnja pretoka | |
| 2,4 GHz | 573.5 Mbps |
| 5 GHz | 4.8 Gbps |
| 6 GHz | 4.8 Gbps |
| Dobiček antene | |
| 2,4 GHz | 3.2 dBi |
| 5 GHz | 5.3 dBi |
| 6 GHz | 6 dBi |
| LED diode | White/blue |
| Gumb | Reboot and factory-reset |

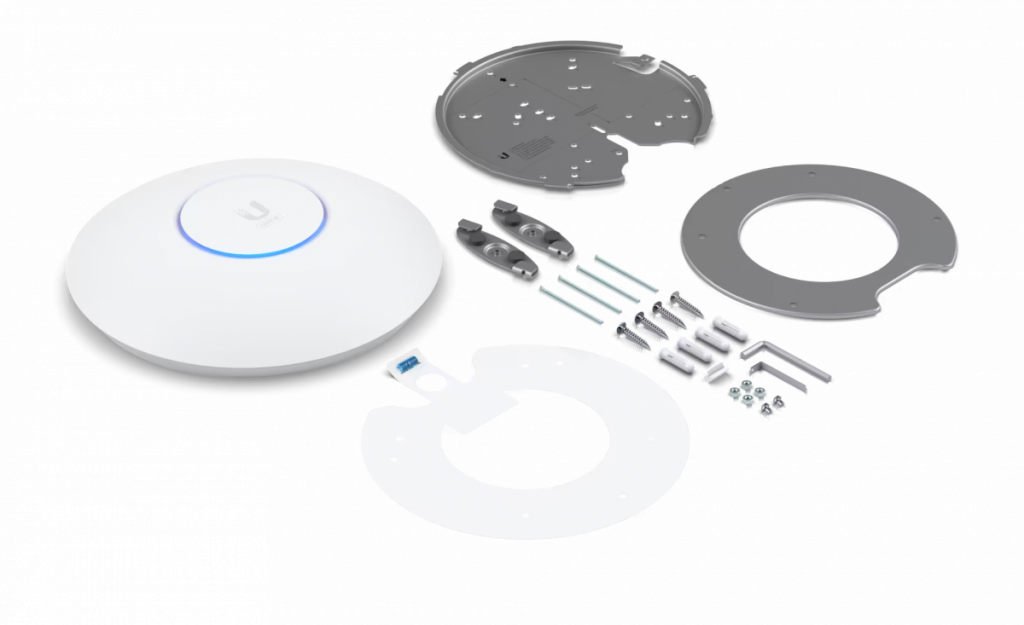

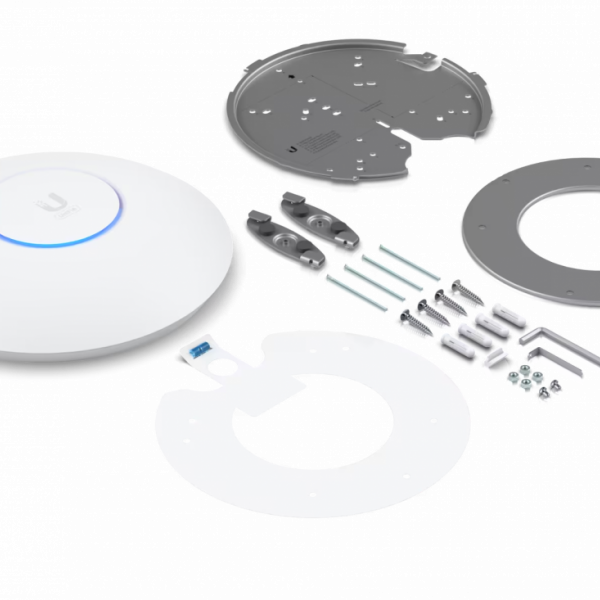

| Montaža | Wall/ceiling (included) |
| Delovna temperatura | -30 to 60° C (-22 to 140° F) |
| Delovna vlažnost | 5 to 95% noncondensing |
| Certifikati | CE, FCC, IC |
| Programska oprema | |
| WiFi standardi | 802.11a/b/g |
| WiFi 4/WiFi 5/WiFi 6/WiFi 6E | |
| Brezžična varnost | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Napredni QoS | Per-user rate limiting |
| Prometna izolacija gostov | Supported |
| Sočasne stranke | 600+ |
| DFS brez čakanja | Yes* |
| *Supported with upcoming firmware versions. | |
| Podprte hitrosti prenosa podatkov (Mbps) | |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Zahteve za prijavo | |
| Omrežje UniFi | Version 7.2.91 and later |
