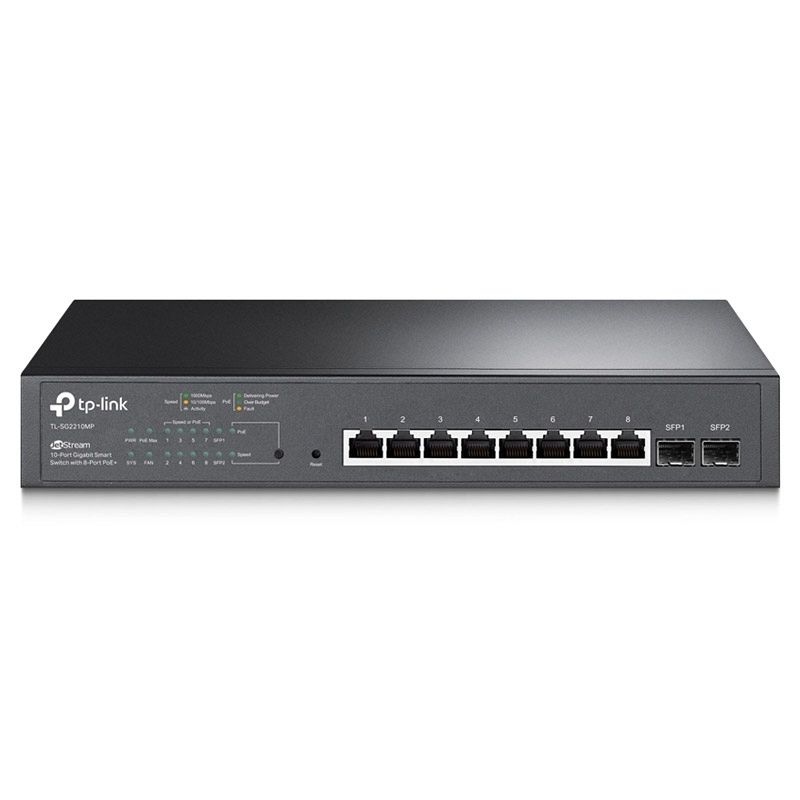

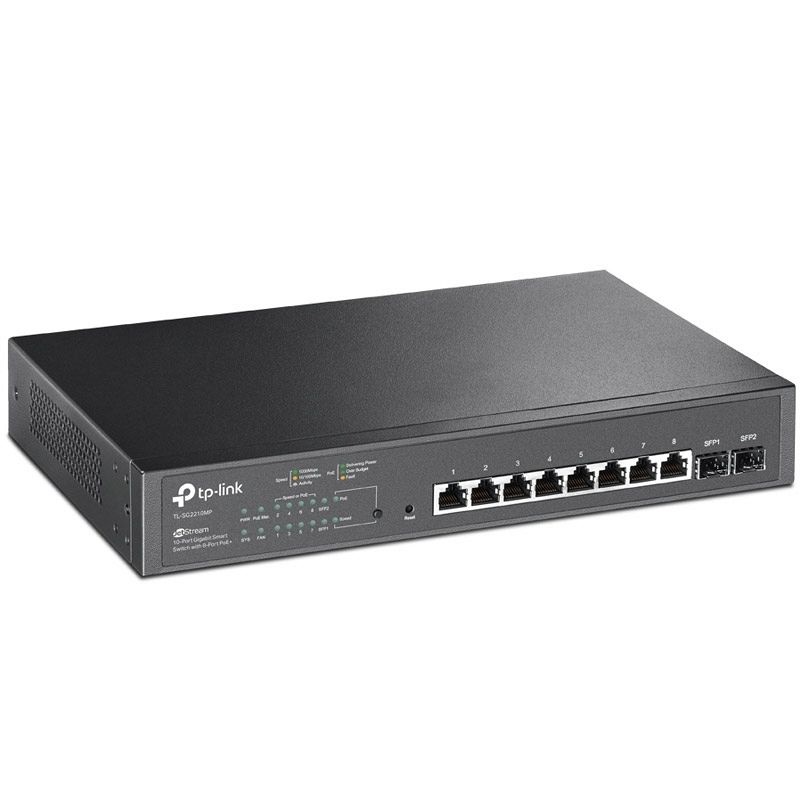

TL-SG2210MP JetStream 10-port Gigabit Smart stikalo z 8-port PoE+
150 W PoE proračun: 8x 802.3at/af-združljiva PoE+ vrata s skupno močjo 150 W*.
Popolni gigabitni vmesniki: 8x gigabit PoE+ vrata in 2x gigabit SFP reža zagotavljajo visoke hitrosti povezave.
Vgrajen v Omada SDN: Zero-Touch Provisioning (ZTP), centralizirano upravljanje v oblaku in inteligentno spremljanje.
Centralizirano upravljanje: dostop v oblaku in aplikacija Omada za izjemno udobje in enostavno upravljanje.
Robustne varnostne strategije: vezava vrat IP-MAC, ACL, zaščita vrat, DoS Defend, nadzor nad nevihto, DHCP Snooping, 802.1X, preverjanje pristnosti po radiju in drugo.
Optimizirajte glasovne in video aplikacije: L2/L3/L4 QoS in vohunjenje IGMP
Programsko definirano omrežje (SDN) z dostopom v oblaku
Omadina programsko definirana mreža (SDN) združuje omrežne naprave, vključno z dostopnimi točkami, stikali in prehodi, ki zagotavljajo 100% centralizirano upravljanje v oblaku. Omada ustvarja zelo razširljivo omrež je - vse je nadzorovano iz enega vmesnika. Na voljo so brezhibne brezžične in žične povezave, idealne za uporabo v gostinstvu, izobraževanju, trgovini na drobno, v pisarnah itd.
TL-SG2210MP
6935364030674
TP-LINK
rack / namizni
Managed
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
8x 10/100/1000 Mbps RJ45, 2x 100/1000 Mbps SFP
8
10/100/1000Mbps
8x PoE+ 802.3at/af, do 30W na port, skupno do 150W
Kakovost storitev:
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port/Flow based Rating Limit
- Smoother Performance
- Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 in L2+ Lastnosti:
- DHCP Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect, Root Protect
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
L2 Multicast
- IPv4, IPv6 shared multicast groups (511 groups max.)
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Podpora
- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN
- VLAN Group
- Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN
- Protocol VLAN
- GVRP
- Voice VLAN
Seznam za nadzor dostopa - 230 vnosov
- Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
- Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
- IPv6 ACL
- Combined ACL
- Rule Operation
- Permit/Deny
- Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
- Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Varnost:
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
- IP/Port/MAC based access control
MIBs
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
294 x 180 x 44 mm
24 mesecev
Stikalo, napajalni kabel, navodila, rack nosilci, gumijaste nogice
