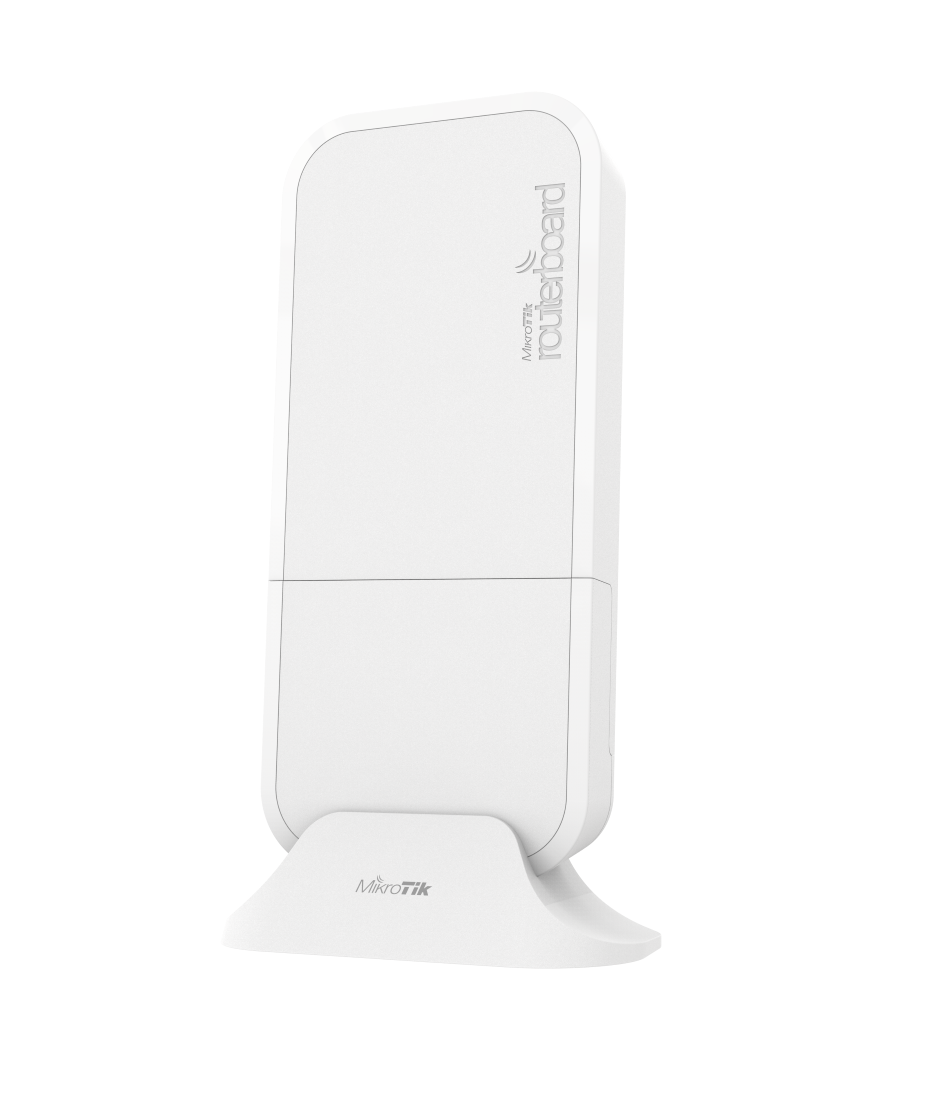

Majhen paket z velikimi ambicijami – komplet wAP ac LTE6 je nadgradnja izjemno stroškovno učinkovite dvopasovne (2,4 / 5 GHz) domače dostopne točke, ki temelji na priljubljeni vremensko odporni obliki wAP.
Njegov novi modem CAT6 LTE omogoča še večjo hitrost prenosa – do 300 Mbps!
CAT6 omogoča tudi združevanje nosilcev in omogoča napravi, da uporablja več pasov hkrati.
Velika prednost, ko je na območju veliko uporabnikov LTE.
Zagotavlja boljšo odzivnost v gneči in večjo učinkovitost pri šibkejšem signalu na podeželju.

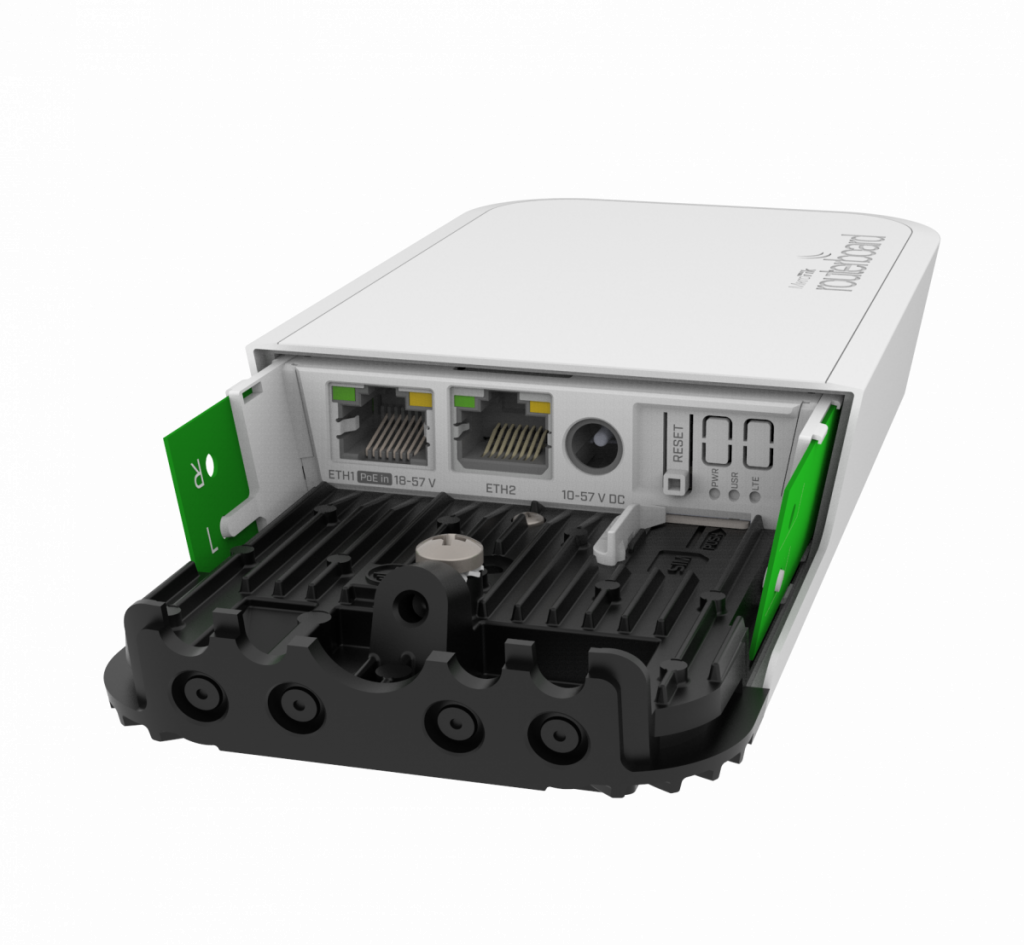

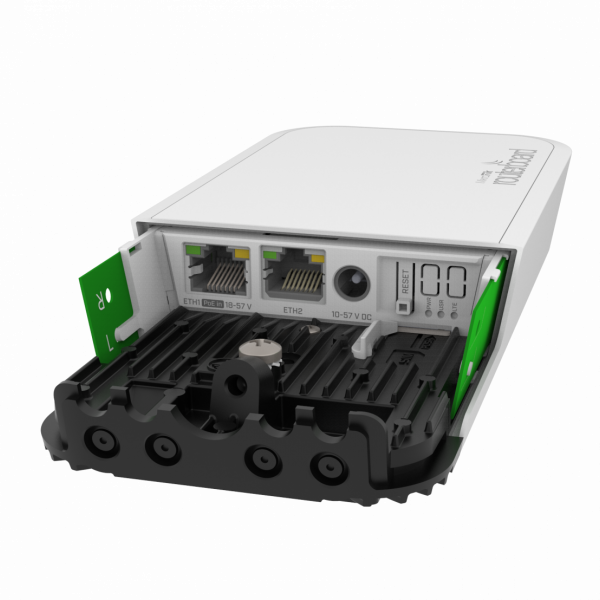

Komplet wAP ac LTE6 ima dva gigabitna ethernetna priključka – napravo lahko uporabljate kot žični usmerjevalnik z varnostno kopijo LTE prek reže za mikro SIM.
Druga možnost je, da lahko uživate v gladki brezžični izkušnji kjer koli – v zaprtih prostorih ali na prostem.
wAP ac LTE je zasnovan za zagotavljanje močne in zanesljive povezave v skoraj vseh razmerah in vremenskih razmerah.

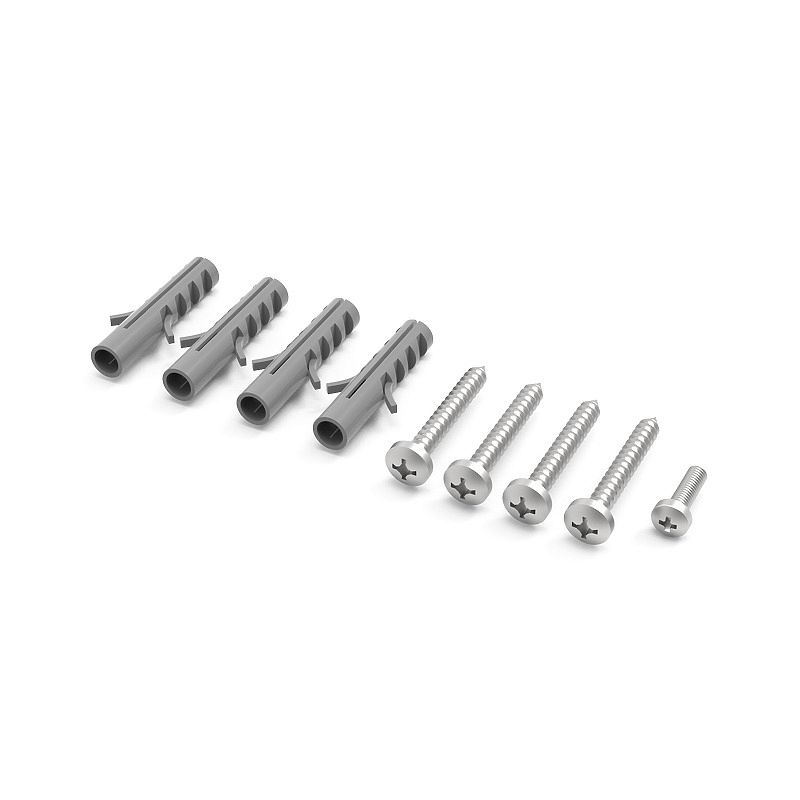

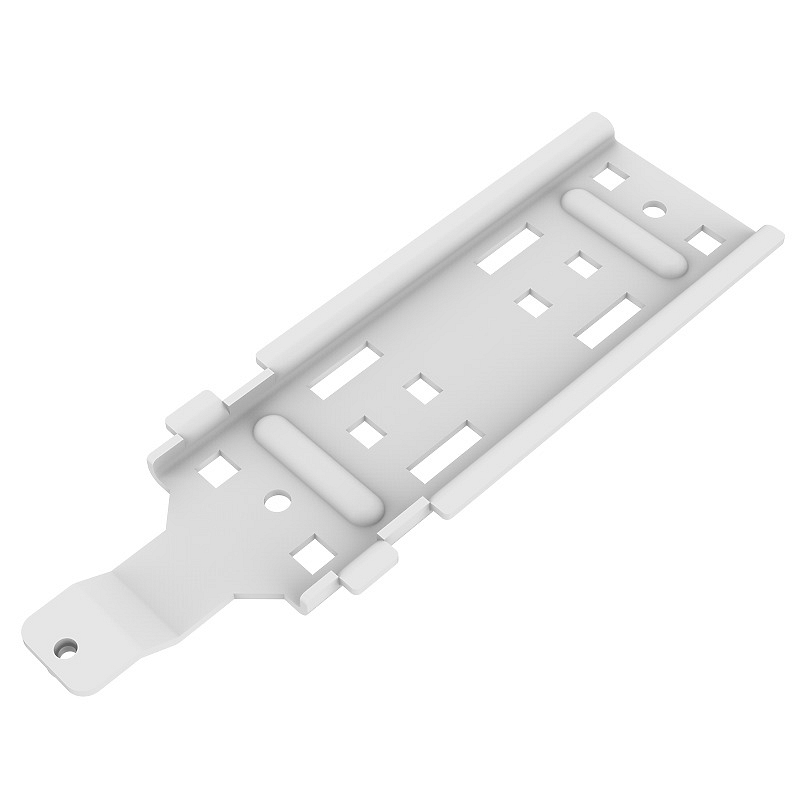

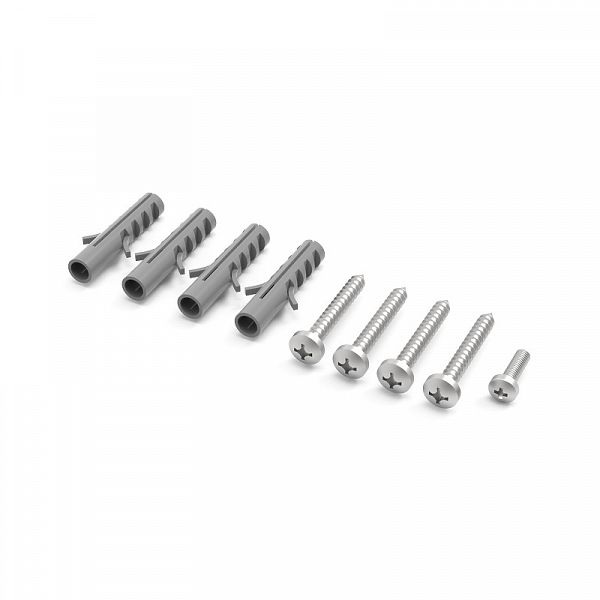

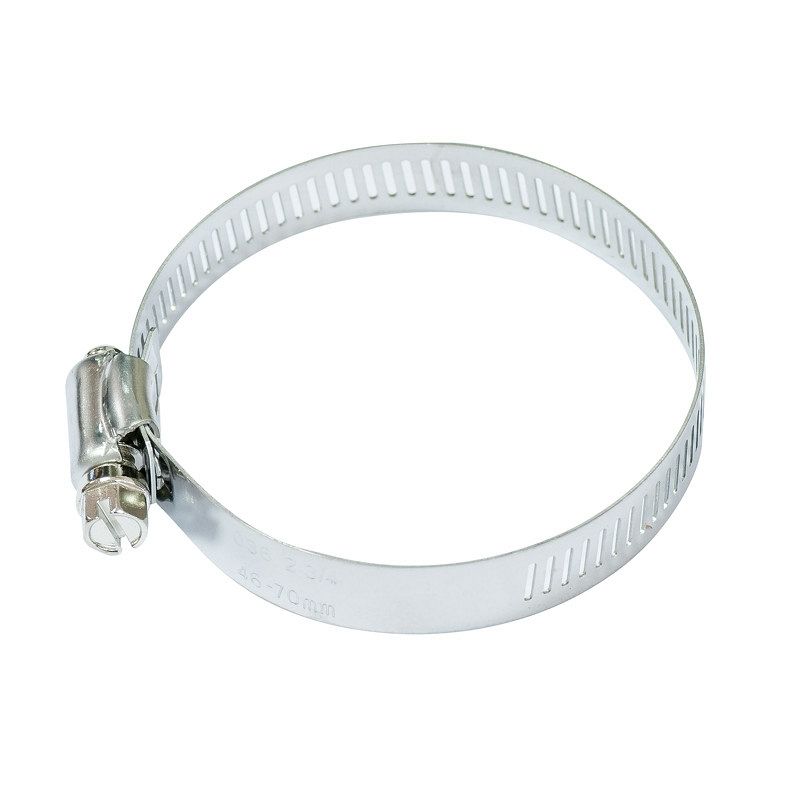

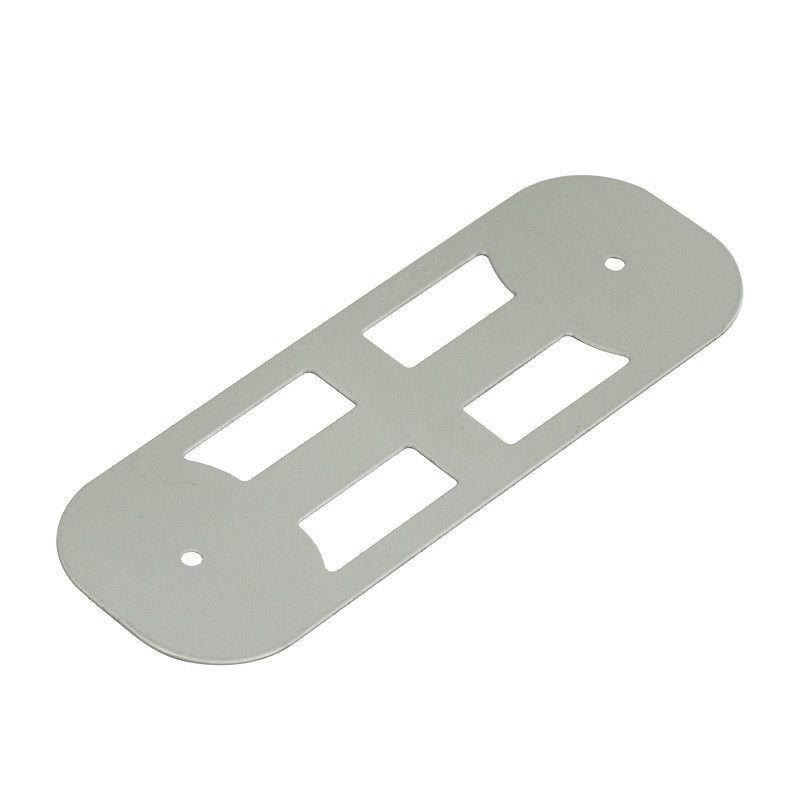

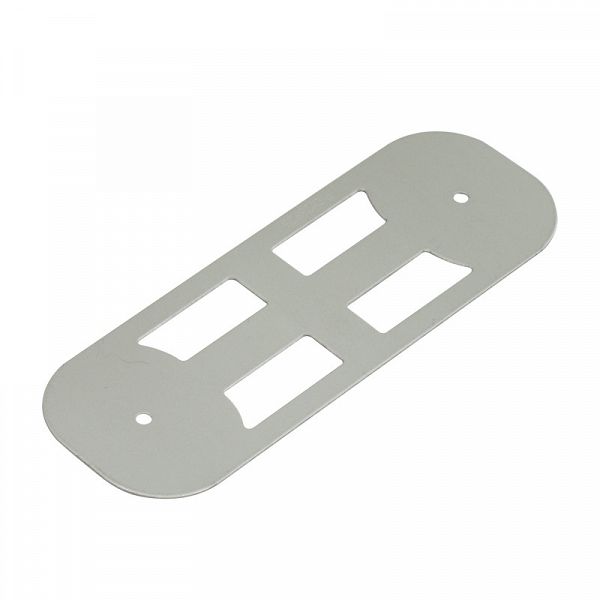

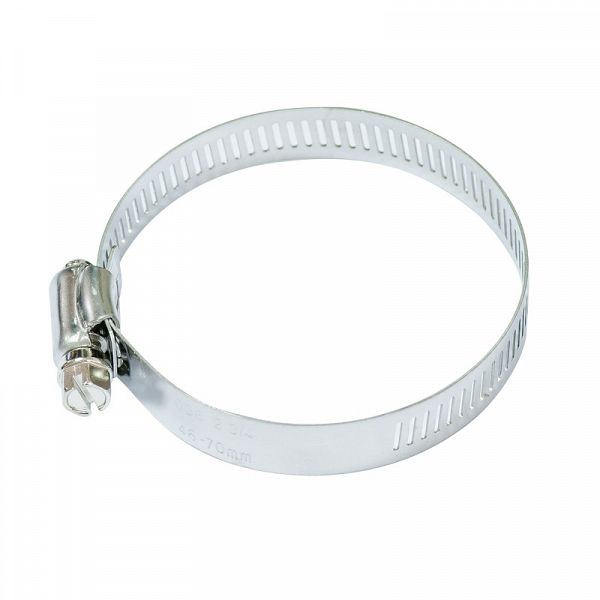

Prenese temperature od -30 C° do +60 C° in se enostavno namesti na stene, strope ali stebre.
| Specifications | |
| Details | |
| Product code | RBwAPGR-5HacD2HnD&R11e-LTE6 |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Switch chip model | IPQ-4018 |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -30°C to 60°C |
| IPsec hardware acceleration | Yes |
| Powering | |
| Details | |
| Number of DC inputs | 2 (DC jack, PoE-IN) |

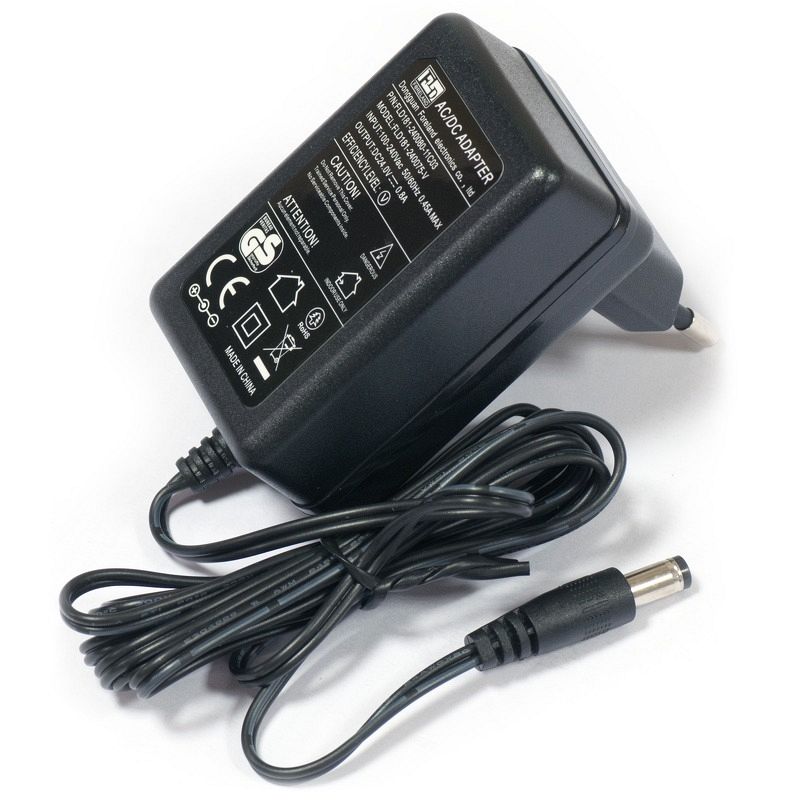

| DC jack input Voltage | 10-57 V |
| Max power consumption | 16 W |
| Max power consumption without attachments | 10 W |
| Cooling type | Passive |

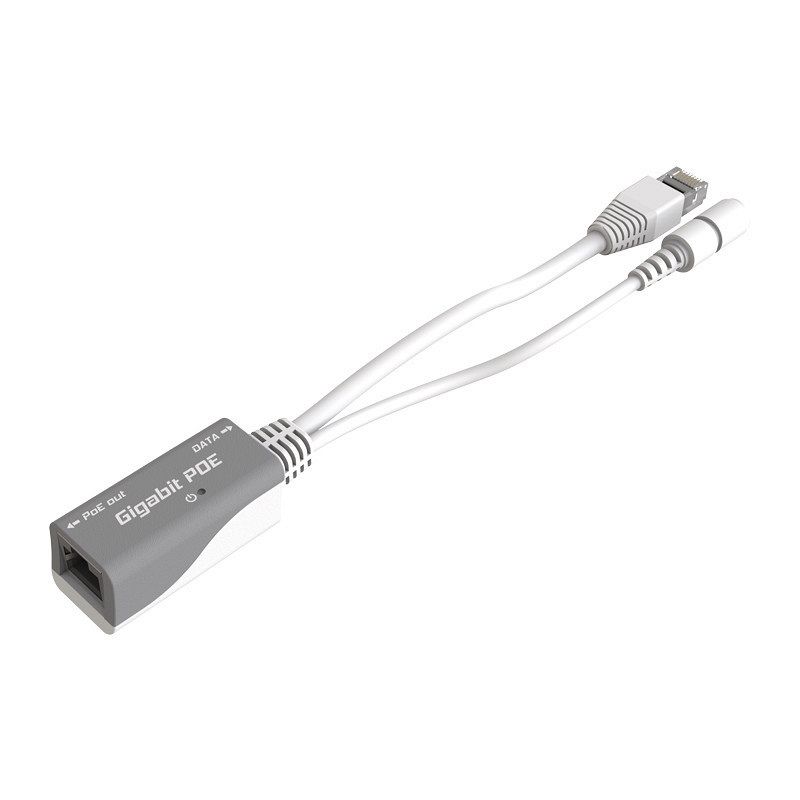

| PoE in | 802.3af/at |
| PoE in input Voltage | 18-57 V |
| Mobile | |
| Details | |
| 2G Category | Class12 |
| 2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| 3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
| 3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
| LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
| LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
| Wireless specifications | |
| Details | |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 2.maj |
| Wireless 2.4 GHz chip model | IPQ-4018 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 2.maj |
| Wireless 5 GHz chip model | IPQ-4018 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Ethernet | |
| Details | |
| 10/100/1000 Ethernet ports | 2 |
| Peripherals | |
| Details | |
| Number of SIM slots | 1 Modem (Micro SIM) |
| MiniPCI-e slots | 1 |
| Other | |
| Details | |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Certification & Approvals | |
| Details | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
