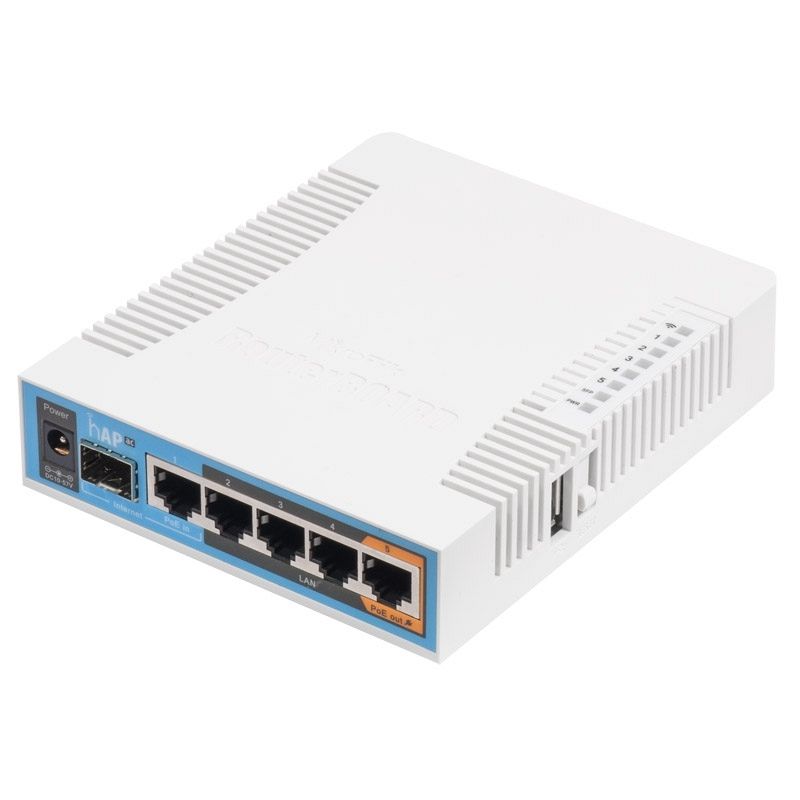

MikroTik hAP ac - 720 MHz CPU, 128 MB RAM-a, 5x Gigabit LAN
HAP ac je najbolj univerzalna naprava WLAN za vaš dom ali pisarno. Gre za dvopojasno napravo z gigabitnimi vrati, ki zagotavlja vse prednosti tehnologije 802.11ac, hkrati pa je združljiva s starejšimi napravami.
Omni antene vam omogočajo, da namestite hAP ac v vse mogoče položaje; Oddajnik velike moči zagotavlja zadostno pokritost za vse vaše mobilne naprave.
Druge uporabne funkcije vključujejo vrata USB za povezavo zunanjega pomnilnika ali 3G / 4G modema, PoE na zadnjem Ethernet vmesniku za napajanje drugih naprav RouterBOARD in kletko SFP za povezovanje aktivnih oz. pasivni moduli optičnega omrežja.
Specifications
| Details |
|---|
| Product code |
RB962UiGS-5HacT2HnT |
| Architecture |
MIPSBE |
| CPU |
QCA9558 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
114 x 137 x 29mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$129.00 |
Powering
| Details |
|---|
| PoE in |
Passive PoE |
| PoE in input Voltage |
11-57 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
11-57 V |
| Max out per port output (input < 30 V) |
700 mA |
| Max total out (A) |
700 mA |
| Max power consumption |
17 W |
Wireless
| Details |
|---|
| AC speed |
AC1750 |
| Antenna gain dBi for 2.4 GHz |
2.5 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wi-Fi generation |
5 |
| Wireless 2.4 GHz Max data rate |
450 Mbit/s |
| Wireless 5 GHz Max data rate |
1300 Mbit/s |
| Wireless 2.4 GHz number of chains |
3 |
| Wireless 2.4 GHz chip model |
QCA9558 |
| Wireless 5 GHz number of chains |
3 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9880 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
| Details |
|---|
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Other
| Details |
|---|
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
