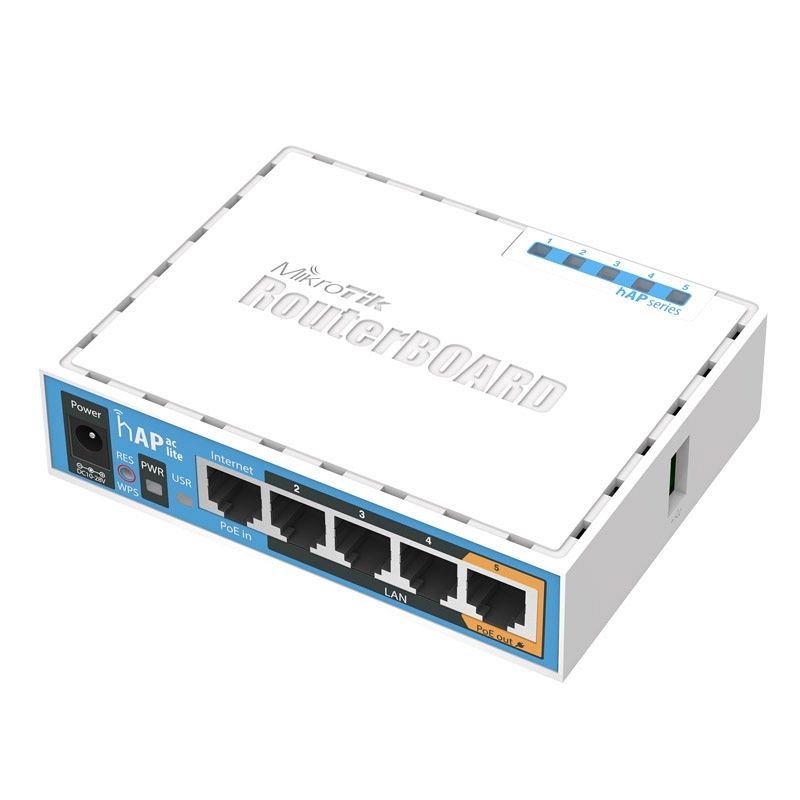

HAP ac lite je dvojna sočasna dostopna točka, ki omogoča pokritje Wifi hkrati za frekvence 2,4GHz in 5GHz.
Enota je opremljena z 650MHz CPU, 64MB RAM-a, petimi 10 / 100Mbps Ethernet vrati (PoE izhod na vrata # 5), dvo verižnim brezžičnim 802.11b / g / n 2.4GHz brezžičnim omrežjem, eno verigo 802.11ac 5GHz brezžičnim omrežjem, USB vhodom za 3G / 4G modem in licenco RouterOS L4.
Mikrotik ima na voljo dve različici - RB952Ui-5ac2nD (International) in RB952Ui-5ac2nD-US (ZDA). RB952Ui-5ac2nD-US (ZDA) je tovarniško zaklenjen za frekvence 2412-2462MHz, 5150-5250MHz in 5725-5850MHz. Te ključavnice ni mogoče odstraniti. RB952Ui-5ac2nD (International) podpira območje 2412-2484MHz in 5150MHz - 5875MHz.
Specifications
| Details |
|---|
| Product code |
RB952Ui-5ac2nD |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
113 x 89 x 28mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-30°C to 70°C |
| Suggested price |
$49.95 |
Powering
| Details |
|---|
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-30 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-30 V |
| Max out per port output (input < 30 V) |
500 mA |
| Max total out (A) |
500 mA |
| Max power consumption |
8 W |
Wireless
| Details |
|---|
| AC speed |
AC750 |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wi-Fi generation |
5 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz Max data rate |
433 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 5 GHz number of chains |
1 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9887 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports |
5 |
Peripherals
| Details |
|---|
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
Več na: uradni strani
