HAP ac lite je dvojna sočasna dostopna točka, ki omogoča pokritje Wifi hkrati za frekvence 2,4GHz in 5GHz.

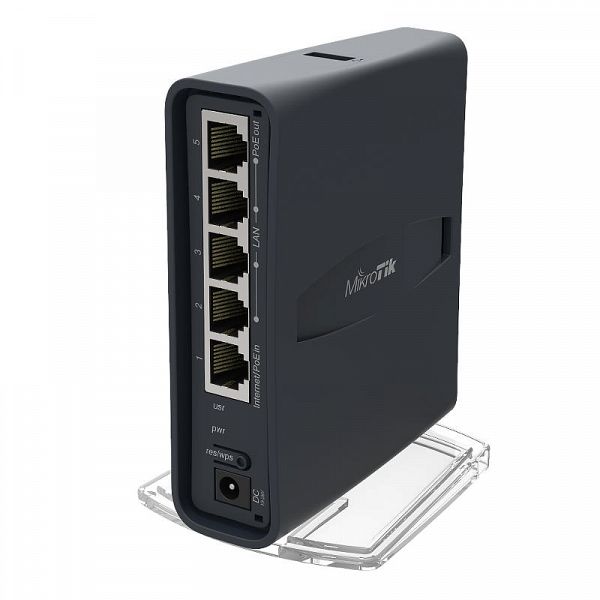

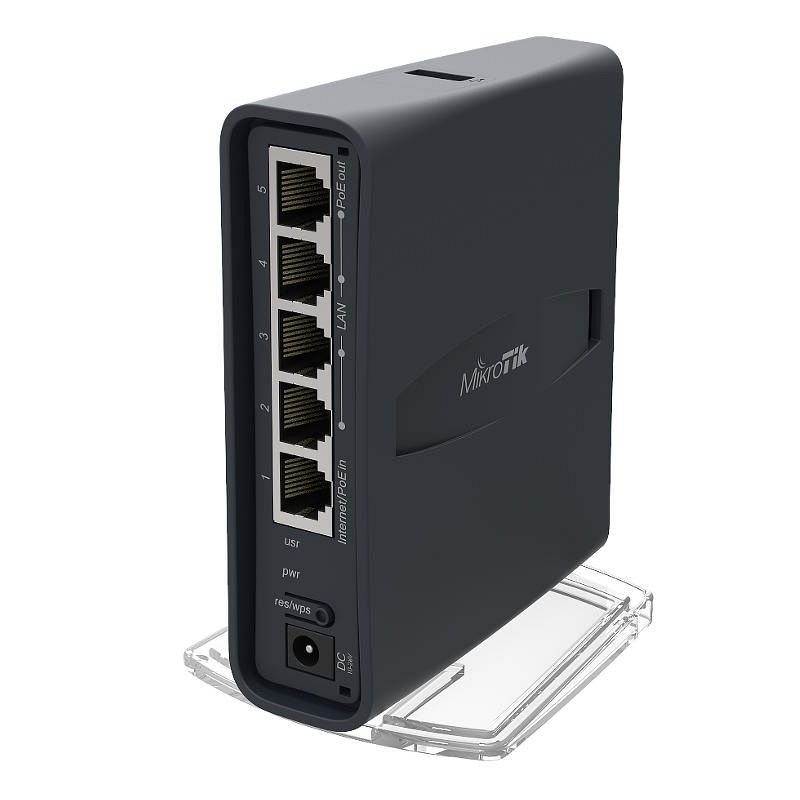

Enota je opremljena z 650MHz CPU, 64MB RAM-a, petimi 10 / 100Mbps Ethernet vrati (PoE izhod na pristanišču # 5), dvo verižnim brezžičnim 802.11b / g / n 2,4GHz brezžičnim omrežjem, eno verigo 802.11ac 5GHz brezžično, USB vhodom za 3G / 4G modem in licenco RouterOS L4.

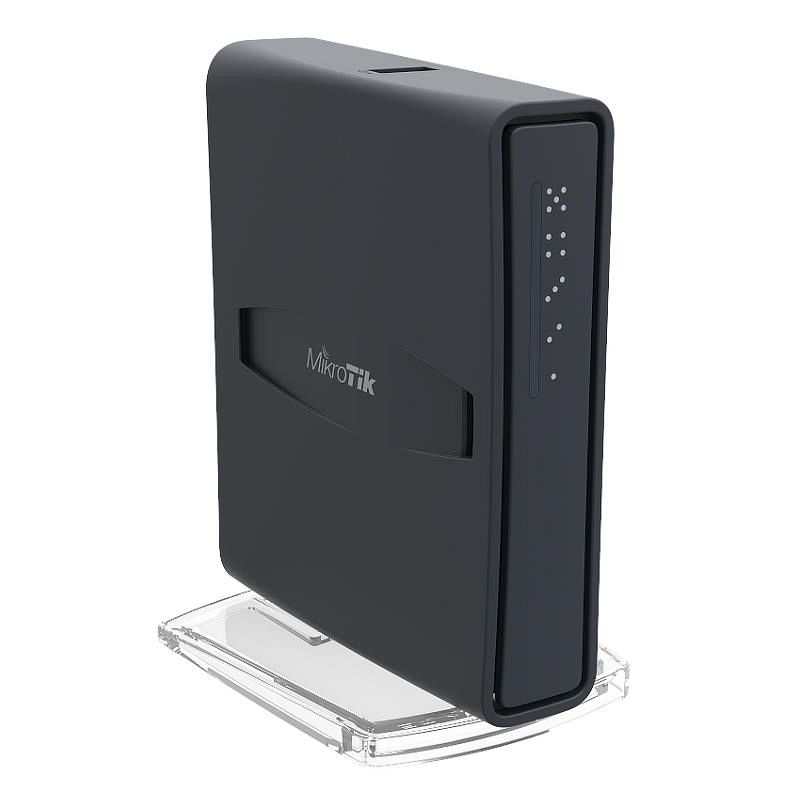

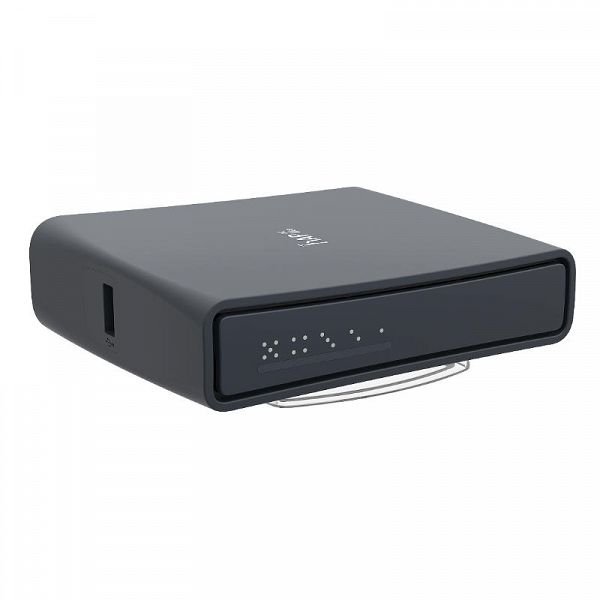

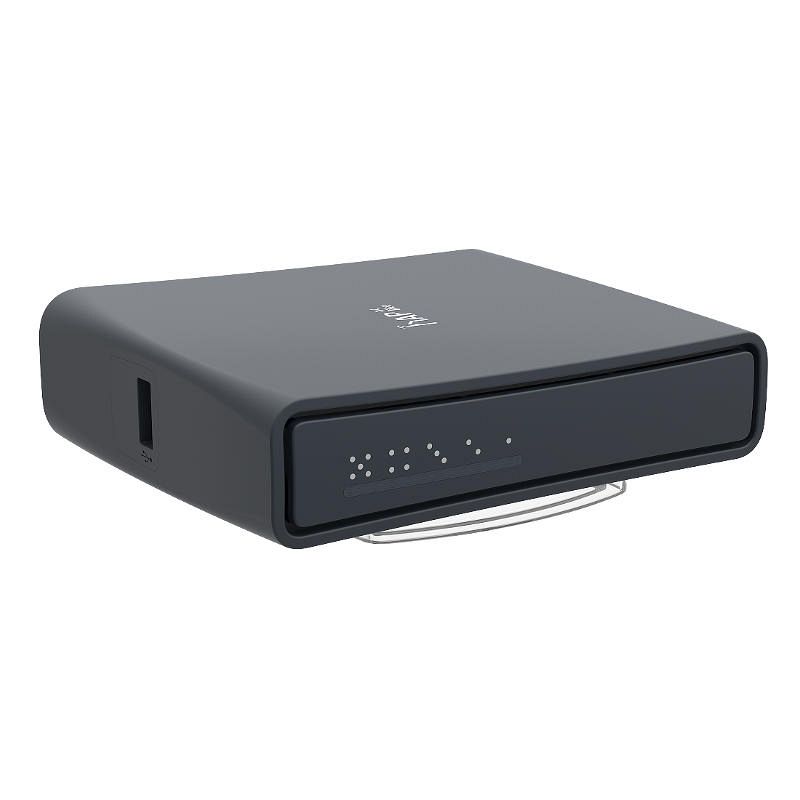

Novi dizajnerski univerzalni ovitek omogoča namestitev enote vodoravno (namizje) ali navpično (ohišje stolpa). Priložen je komplet za pritrditev na steno.
Mikrotik ima na voljo dve različici - RB952Ui-5ac2nD (International) in RB952Ui-5ac2nD-US (ZDA). RB952Ui-5ac2nD-US (ZDA) je tovarniško zaklenjen za frekvence 2412-2462MHz, 5150-5250MHz in 5725-5850MHz. Te ključavnice ni mogoče odstraniti. RB952Ui-5ac2nD (International) podpira območje 2412-2484MHz in 5150MHz - 5875MHz.
Specifications
| Details |
|---|
| Product code |
RB952Ui-5ac2nD-TC |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
34 x 119 x 98mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-30°C to 70°C |
| Suggested price |
$49.95 |
Powering
| Details |
|---|
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-28 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether5 |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-28 V |
| Max out per port output (input < 30 V) |
500 mA |
| Max total out (A) |
500 mA |
| Max power consumption |
8 W |
Wireless
| Details |
|---|
| AC speed |
AC750 |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Wi-Fi generation |
5 |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz Max data rate |
433 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 5 GHz number of chains |
1 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
2 |
| Wireless 5 GHz chip model |
QCA9887 |
Ethernet
| Details |
|---|
| 10/100 Ethernet ports |
5 |
Peripherals
| Details |
|---|
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
