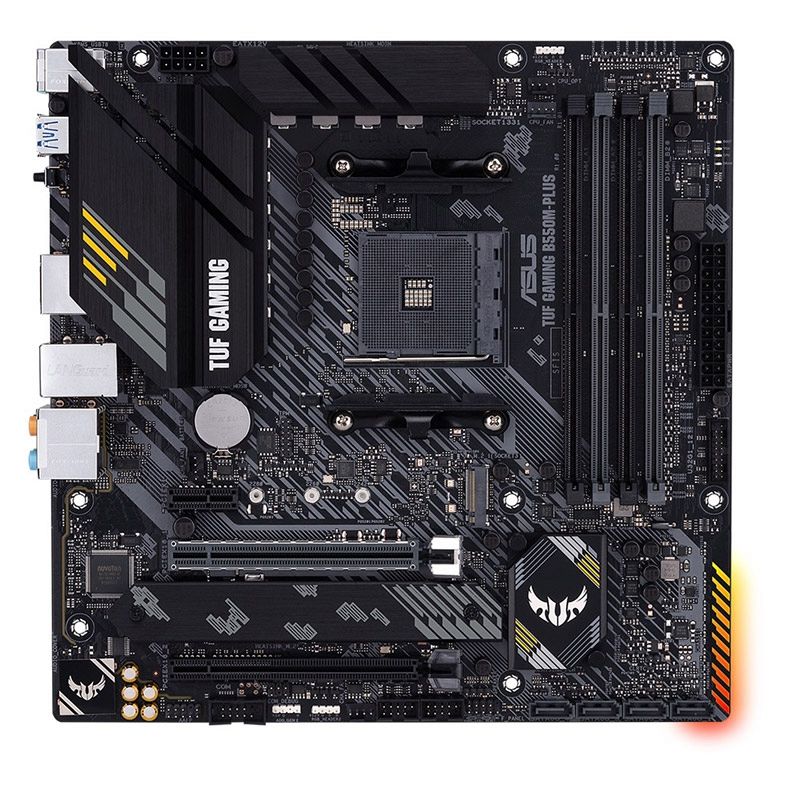

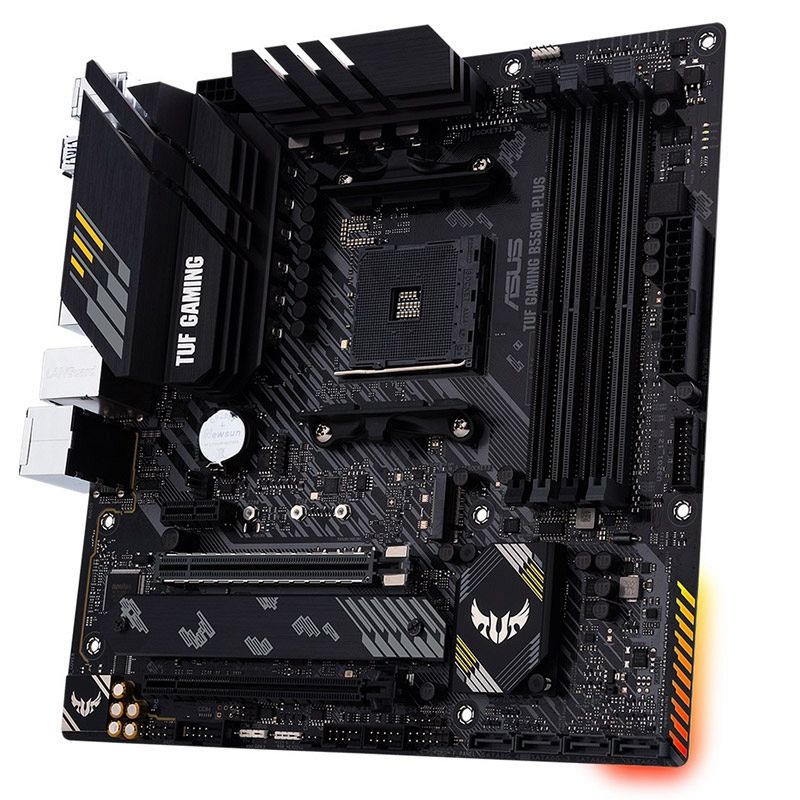

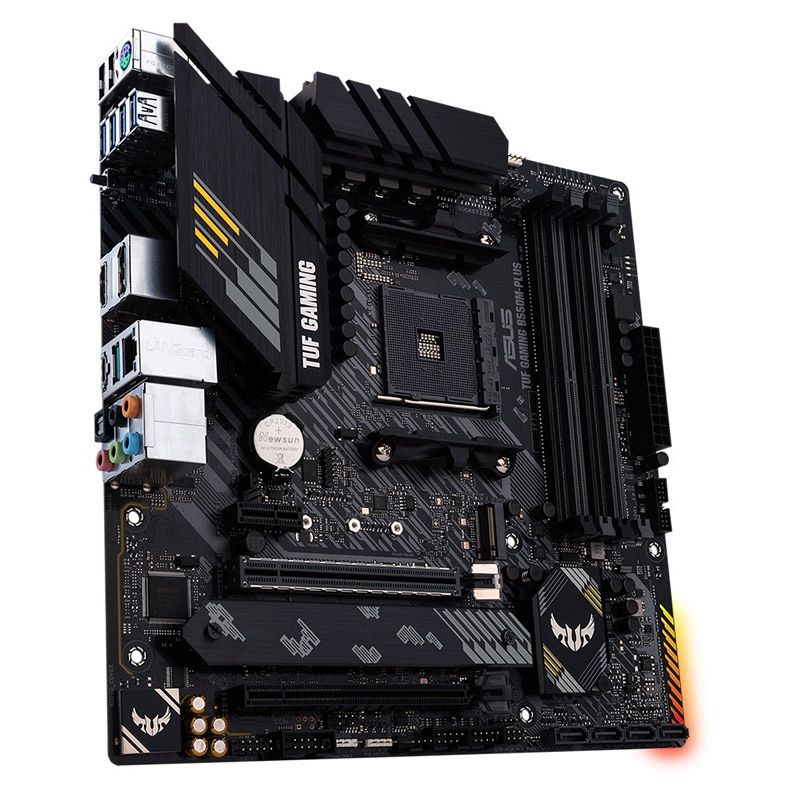

ASUS TUF B550M-Plus AM4 DDR4 mATX gaming osnovna plošča
Igralna matična plošča AMD B550 (Ryzen AM4) mikro ATX s PCIe 4.0, dvojnim M.2, 10 napajalnimi stopnjami DrMOS, 2,5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A in Type-C ter Aura podpora za sinhronizacijo osvetlitve RGB
VZDRŽLJIVO. STABILNO. ZANESLJIVO.
TUF Gaming B550M-Plus destilira bistvene elemente najnovejše platforme AMD in jih združuje s funkcijami, pripravljenimi za igre, in dokazano vzdržljivostjo. Osnovna plošča, zasnovana s komponentami vojaškega razreda, nadgrajeno rešitvijo napajanja in obsežnim naborom možnosti hlajenja, zagotavlja neverjetno zmogljivost z neomajno stabilnostjo pri igranju.
Z matično ploščo TUF Gaming, imate tudi koristi od TUF Gaming Alliance - ASUS-ovega sodelovanja z zaupanja vrednimi industrijskimi partnerji, ki zagotavlja lažjo gradnjo, najboljšo združljivost in komplementarno estetiko od komponent do ohišja.
90MB14A0-M0EAY0
4718017623544
ASUS
AM4
AMD B550
Micro ATX
4x DIMM, maks. 128GB, DDR4 4866(O.C)
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
1x PCIe 4.0 x16 (x16 mode)
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors
1x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
1x PCIe 3.0 x16 (x4 mode)
1x PCIe 3.0 x1
* Support PCIe bifurcation for RAID on CPU function.
4 x SATA 6Gb/s ports
Skupno podpira 2x M.2 slot(s) and 4x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors :
1x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD B550 Chipset :
1x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
4x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
Zadaj USB Port (skupno 8)
2x USB 3.2 Gen 2 port (1x Type-A +1 x USB Type-C®)
4x USB 3.2 Gen 1 port (4x Type-A)
2x USB 2.0 port (2x Type-A)
Spredaj USB Port (Skupno 6)
2x USB 3.2 Gen 1 port (2x Type-A)
4x USB 2.0 port (4x Type-A)
Realtek RTL8125B 2.5Gb Ethernet

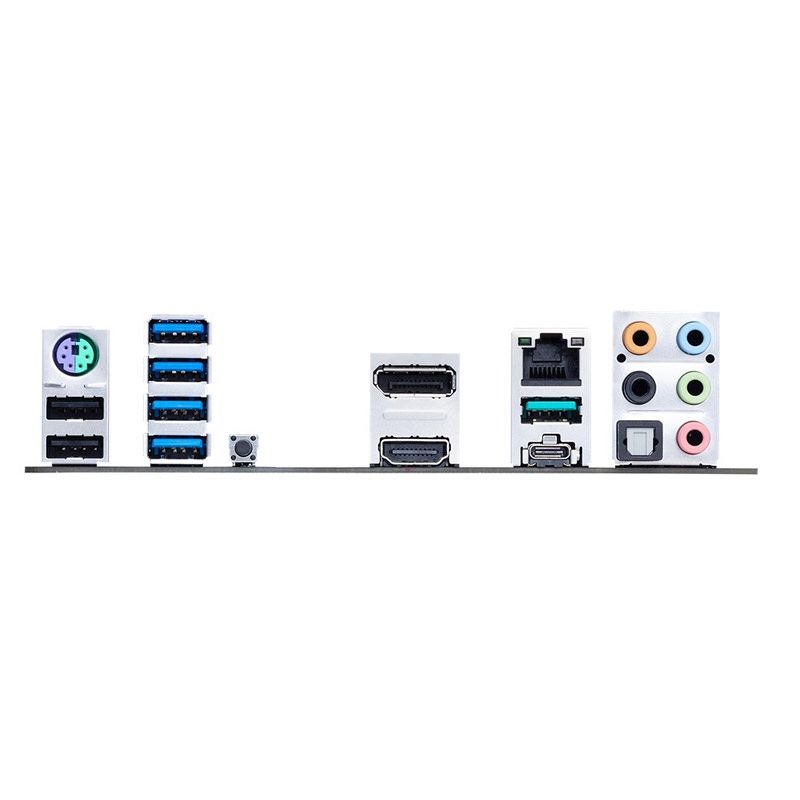

1x PS/2 tipkovnica/miška combo port
1x DisplayPort
1x HDMI
1x LAN (2.5G) port
2x USB 3.2 Gen 2 (teal blue) (1x Type-A+1 x USB Type-C)
2x USB 2.0
4x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)
1x Optical S/PDIF out
5x Audio jack(s)
1x BIOS FlashBack™ Button
1x CPU Fan connector
1x CPU OPT Fan connector
2x Chassis Fan connector
2x Aura RGB Strip Headers
1x Addressable Gen 2 header
1x USB 3.2 Gen 1(up to 5Gbps) connector support additional 2 USB 3.2 Gen 1 port
2x USB 2.0 connector support additional 4 USB 2.0 port
1x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)
1x SPI TPM header
4x SATA 6Gb/s connector
1x 24-pin EATX Power connector
1x 8-pin EATX 12V Power connectors
1x Front panel audio connector (AAFP)
1x Clear CMOS jumper
1x System panel connector
1x COM port header
1x Speaker connector
36 mesecev
