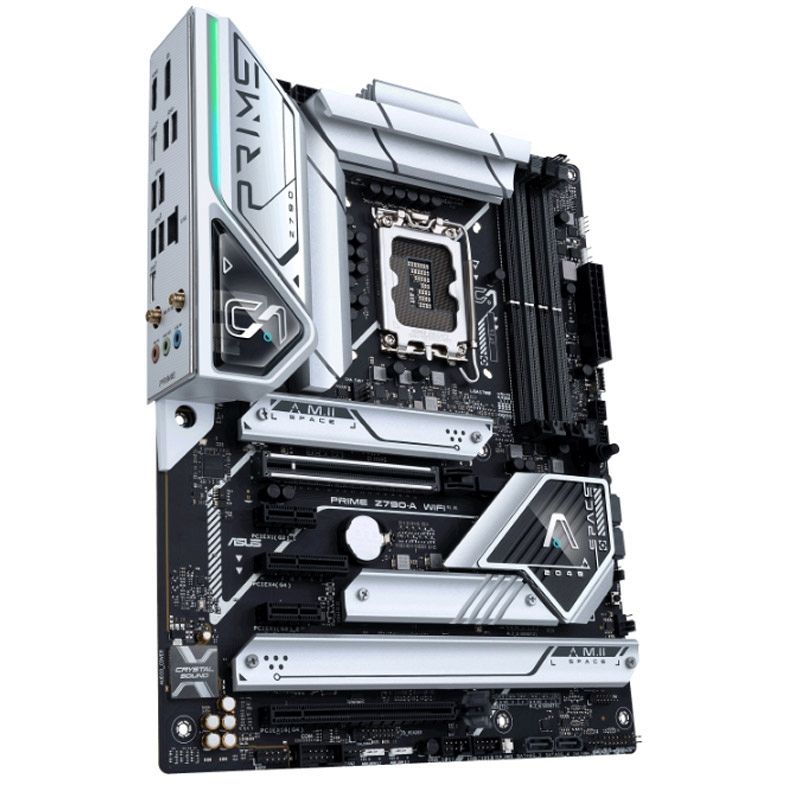

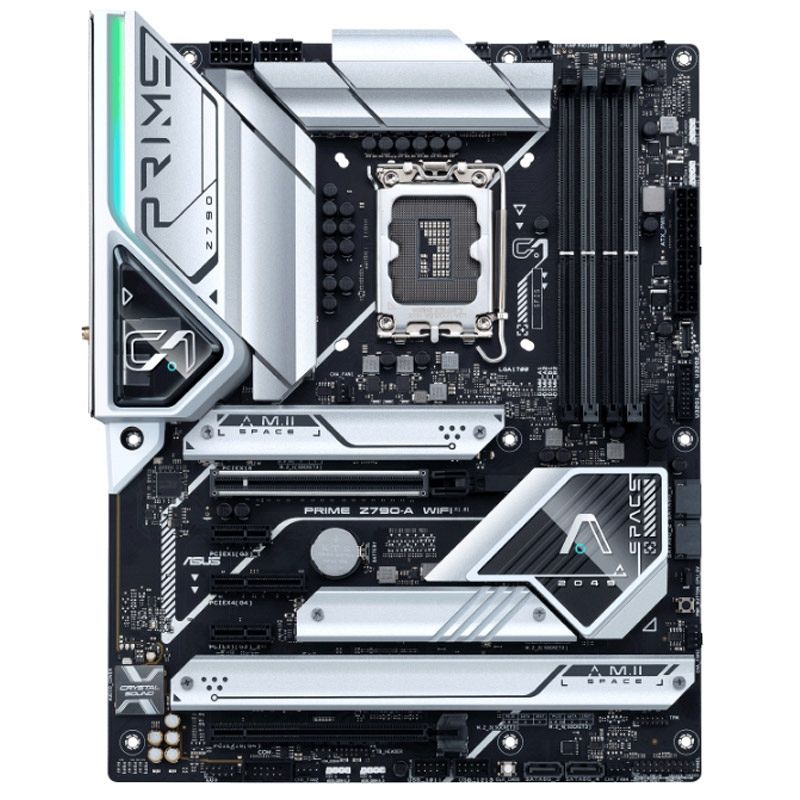

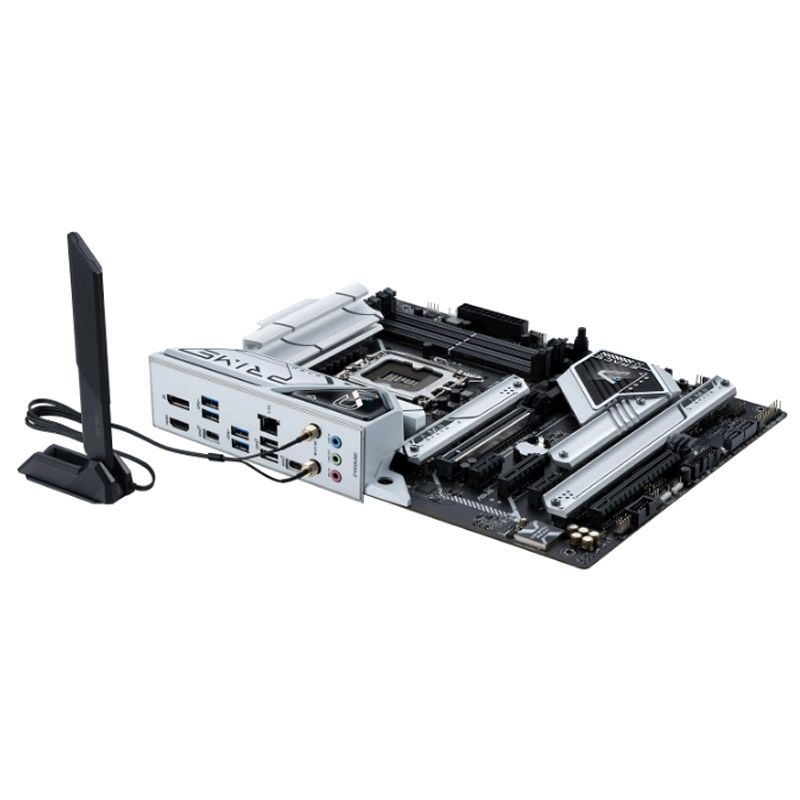

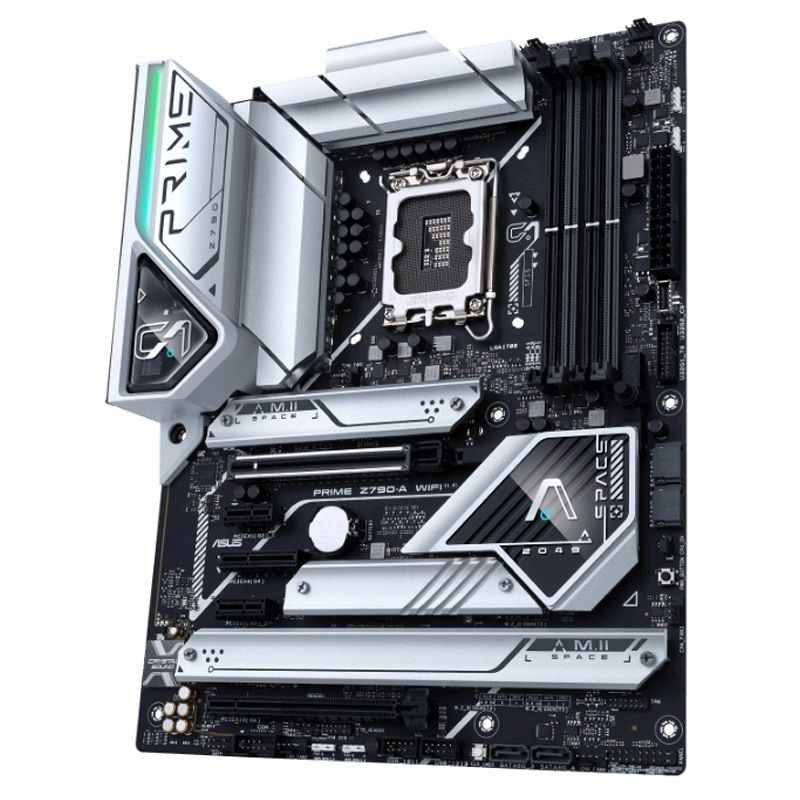

ASUS Prime Z790-A WIFI LGA1700 DDR5 RGB gaming ATX osnovna plošča
Matične plošče serije ASUS Prime so strokovno zasnovane za sprostitev celotnega potenciala procesorjev Intel Core 14. generacije. Ponaša se z robustno zasnovo napajanja, celovitimi rešitvami za hlajenje in inteligentnimi možnostmi prilagajanja, PRIME Z790-A WIFI uporabnikom in izdelovalcem računalnikov ponuja vrsto optimizacij delovanja prek intuitivne programske opreme in funkcij vdelane programske opreme.
ASUS PRIME Z790-A WIFI ponuja vse to v elegantnem paketu futurističnega videza, ki se osredotoča na estetiko oblikovanja vesoljske ladje, s srebrno ploščico z imenom in pokrovom nabora čipov.
90MB1CS0-M1EAY0
4711081939320
ASUS
LGA1700
Intel Z790
ATX
4x DIMM, do največ 192GB, DDR5 7200+ (OC) Mhz
Intel Core Processors (14th & 13th & 12th Gen)
1x PCIe 5.0 x16 slot
Intel® Z790 Chipset
1x PCIe 4.0 x16 slot (podpira x4 mode)
1x PCIe 4.0 x4 slot
2x PCIe 3.0 x1 slots
4x SATA 6 Gb/s
Skupno podpira 4x M.2 slots in 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th & 13th & 12th Gen)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Zadaj USB (skupno 8)
1x USB 3.2 Gen 2x2 port (1x USB Type-C)
3x USB 3.2 Gen 2 ports (2x Type-A, 1x USB Type-C)
4x USB 3.2 Gen 1 ports (4x Type-A)
Spredaj USB (skupno 7)
1x USB 3.2 Gen 2 connector (supports USB Type-C®)
1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2x USB 2.0 headers support additional 4 USB 2.0 ports
1x Realtek 2.5Gb Ethernet

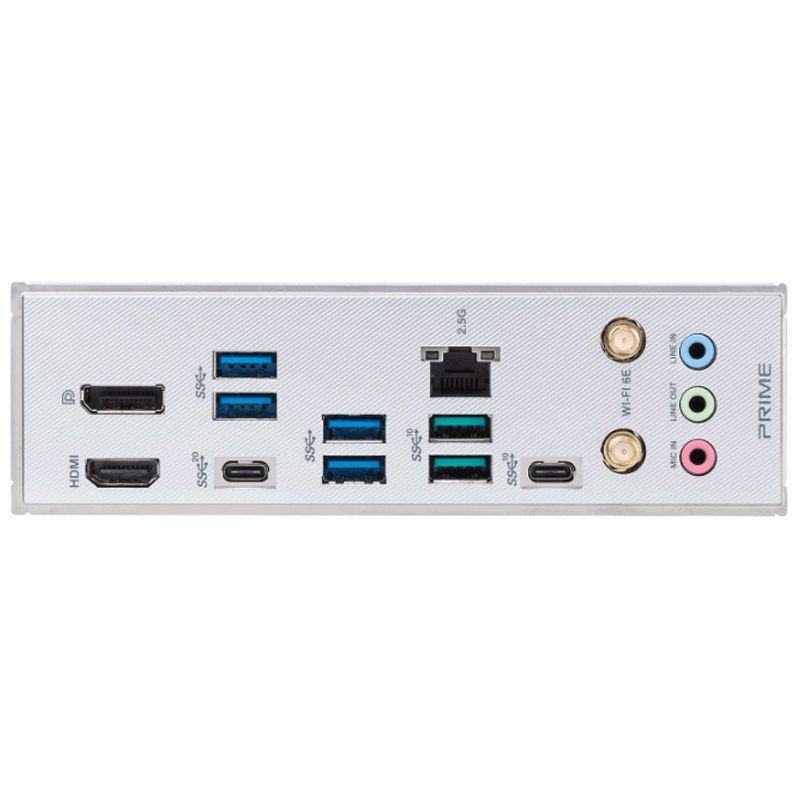

1x USB 3.2 Gen 2x2 port (1x USB Type-C)
3x USB 3.2 Gen 2 ports (2x Type-A, 1x Type-C)
4x USB 3.2 Gen 1 ports (4x Type-A)
1x DisplayPort
1x HDMI port
1x Wi-Fi Module
1x Intel 2.5Gb Ethernet port
3x Audio jacks
Ventilator in hlajenje
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headers
Napajanje
1x 24-pin Main Power connector
2x 8-pin +12V Power connectors
Shranjevanje
4x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 3.2 Gen 2 connector (podpira USB Type-C®)
1x USB 3.2 Gen 1 header podpira 2 dodatna USB 3.2 Gen 1 ports
2x USB 2.0 headers podpira 4 dodatne USB 2.0 ports
Drugo
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x CPU Over Voltage jumper
1x Front Panel Audio header (AAFP)
1x Power button
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thunderbolt™ header

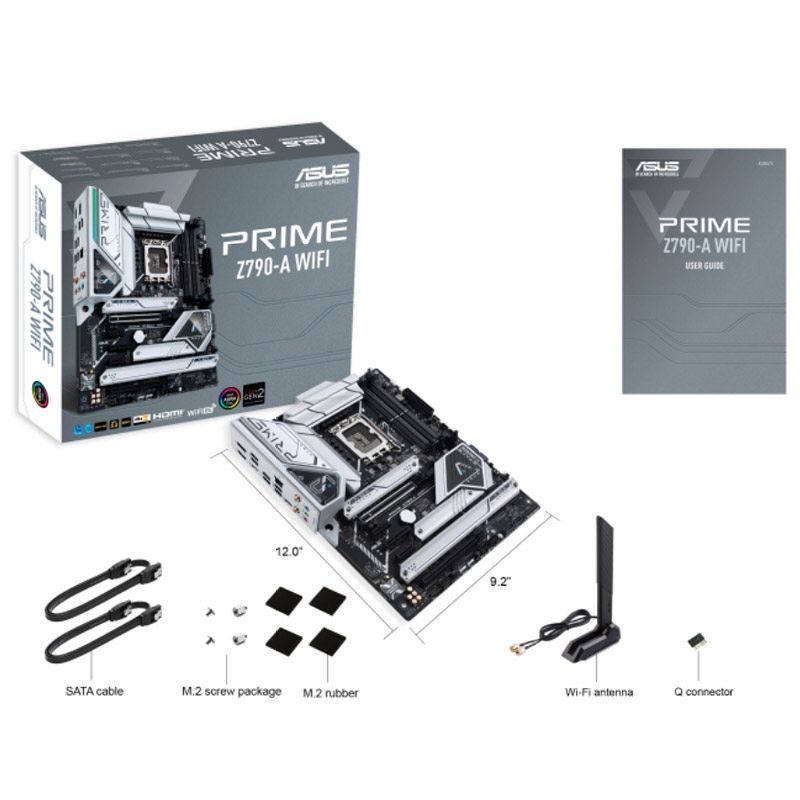

2x kabla SATA 6Gb/s
1x premikajoča se antena ASUS Wi-Fi
1x Q-priključek
2x M.2 Rubber Packages
1x paket vijakov za M.2 SSD
36 mesecev
